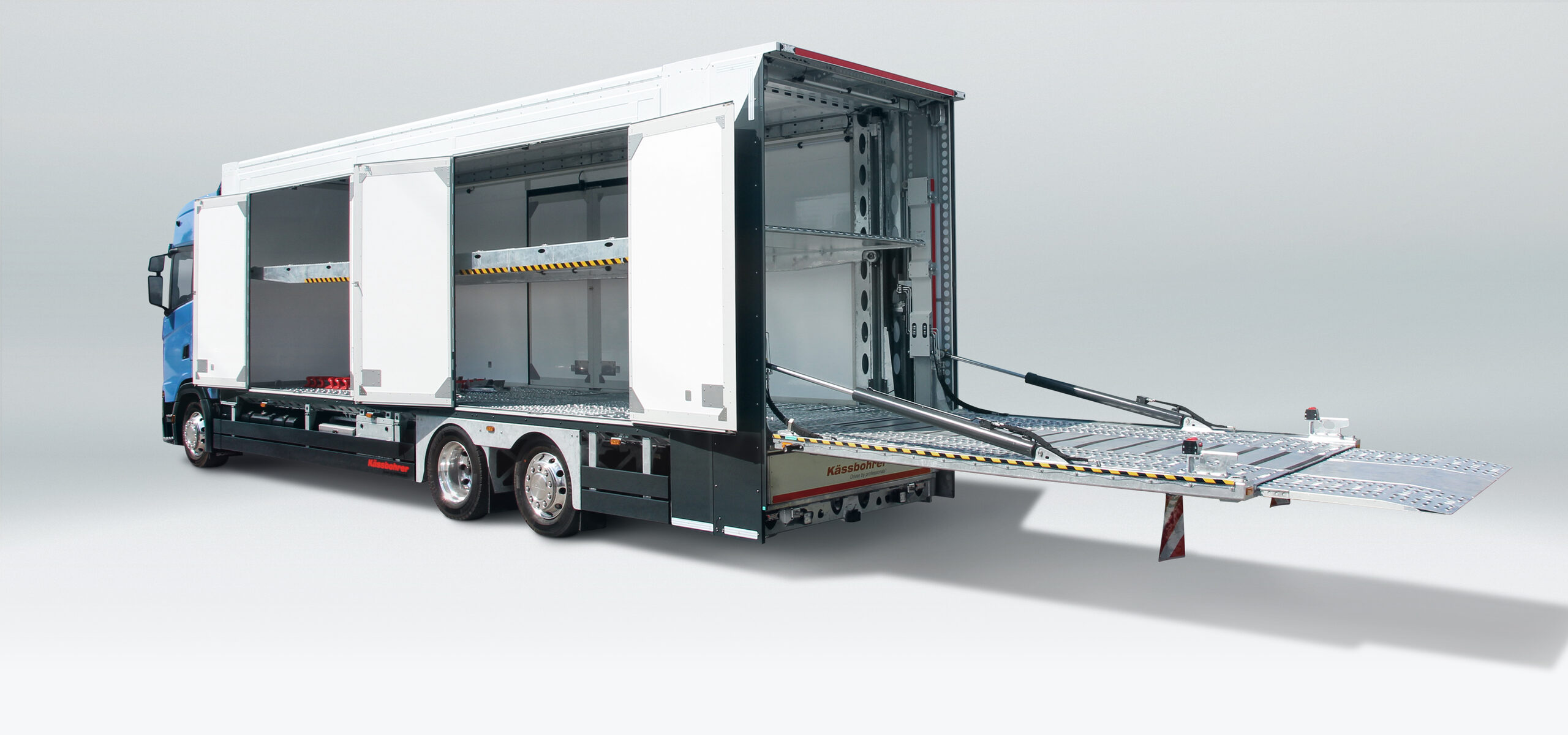

Ecomode Performance S4-260 L

Truck superstructure

The hydraulic elevating lift offers comfortable, barrier-free loading and unloading

The ecomode performance line includes closed motor vehicles and central-axle trailers, especially for the safe transport of particularly exclusive limousines, precious prototypes, individual exhibition vehicles and vintage cars.

Due to the high payload, up to four vehicles can be transported together
Large hinge doors with optional central locking system on both sides of the vehicle provide easy access and good visibility to the loaded vehicles

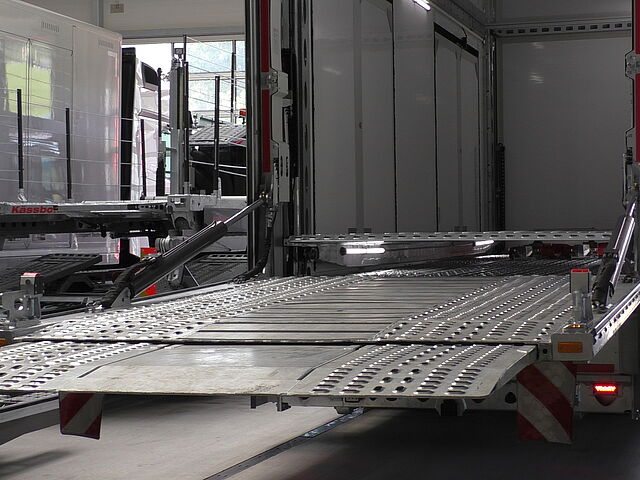

The hydraulic elevating lift offers comfortable, barrier-free loading and unloading, especially for motorsport and supersport vehicles
Flexible in use, especially for urban and distribution transport

Weights and dimensions

Technically permissible maximum mass

26,000 kg

Maximum payload

8,500 kg (depending on equipment)

Length of insede trachs

9,450 mm

Entry width

2,270 mm

Overall vehicle length

Max. 12,000 mm

Notice

The S2-260 L is an individual vehicle. Combined trailer operation is not possible because of the hydraulic elevating lift.

Configuration

Standard equipment

Fully hot-dip galvanised lower loading platform with two pairs of pan fields and ten pairs of pan covers
Fully hot-dip galvanised upper loading platform with four spindle lifting pillars
Box body with two double doors on the left and one double door on the right side
Hydraulic elevating lift Kässbohrer, galvanized, completed by hydraulic support legs
LED loading area lighting
Stainless steel tool box

Optional equipment

Radio remote control for all ecomode functions
Tie-down eyelets with load securing certificate for general cargo transport
Cable winch installed underneath the lower platform
Central door locking system
Multicolour lacquering / metallic lacquering

Loading example
Possible combinations

		Trailer
		metago®pro	variotrans®pro	supertrans®	intago®	intago®MAX	modolan®	ecomode® T4-235	ecomode® T2-180
Truck superstructure	metago®pro	×	×	×	×	×
	variotrans®pro	×	×	×	×	×
	supertrans®pro	×	×	×	×	×
	citytrans®pro	×	×	×	×	×
	modolan®						×
	ecomode® S1-075
	ecomode® S2-180							×
	ecomode® S2-260								×
	ecomode® S2-260 L
