Semitrailer

Safety and protection

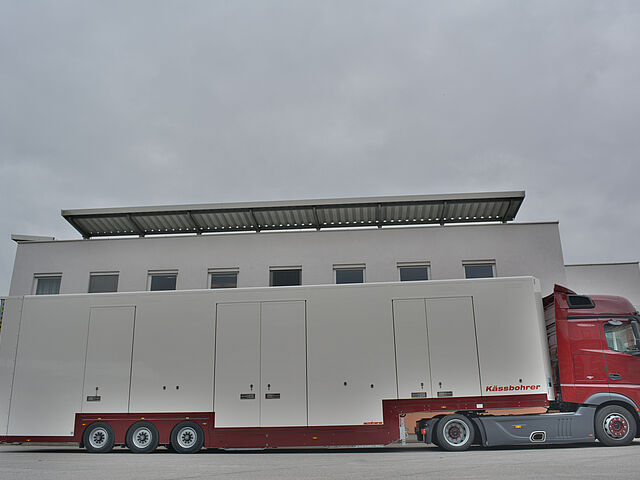

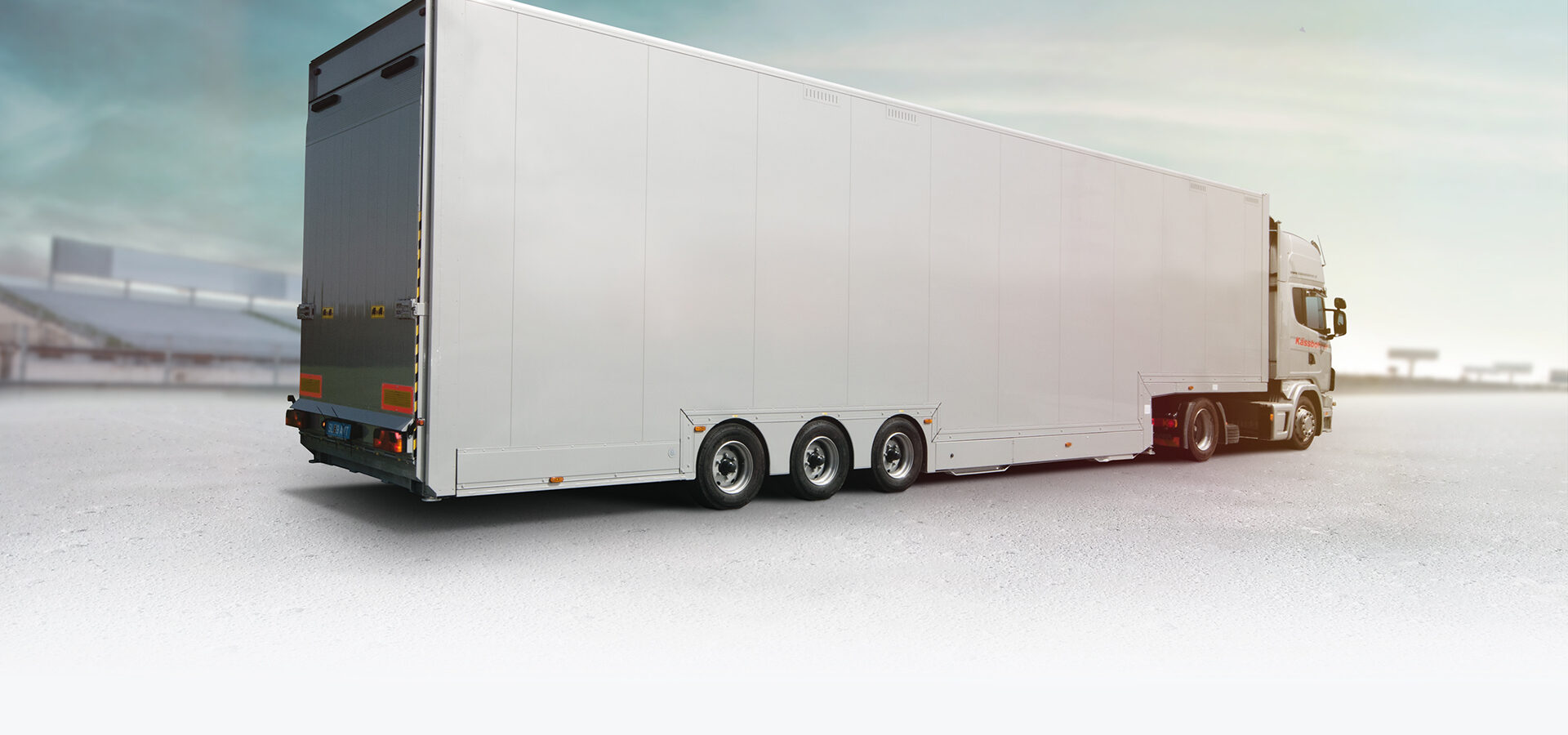

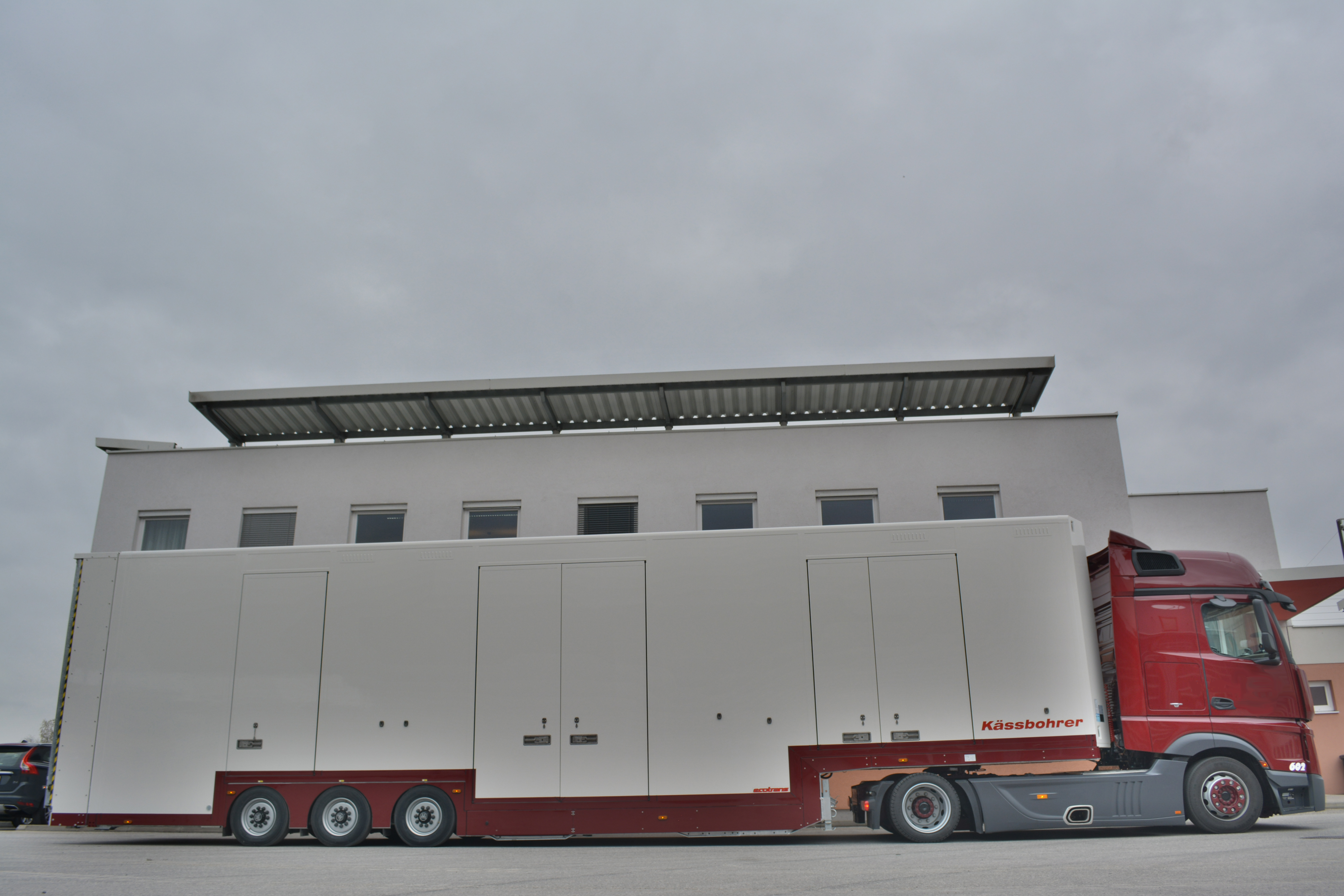

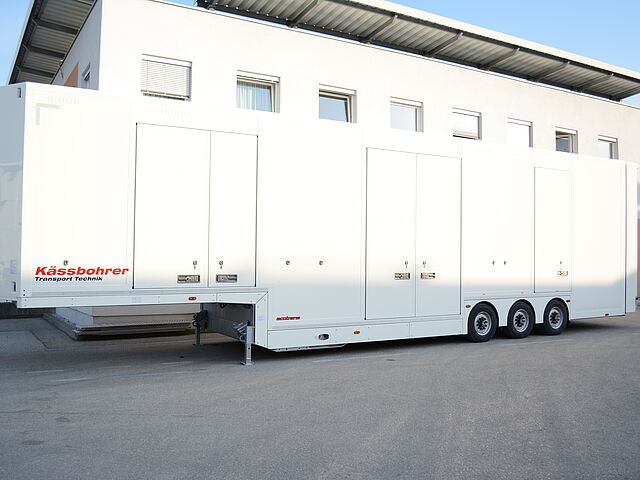

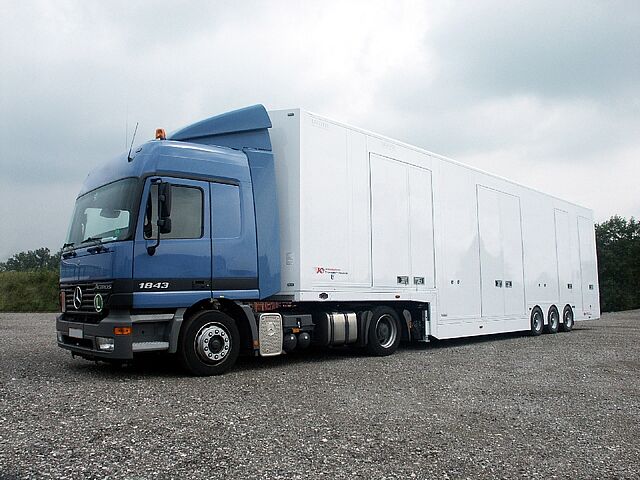

The ecotrans has been designed for safe transportation of exclusive vehicles, high-value prototypes and individual exhibition models.



  • Guarantees the highest possible security for the loaded vehicles

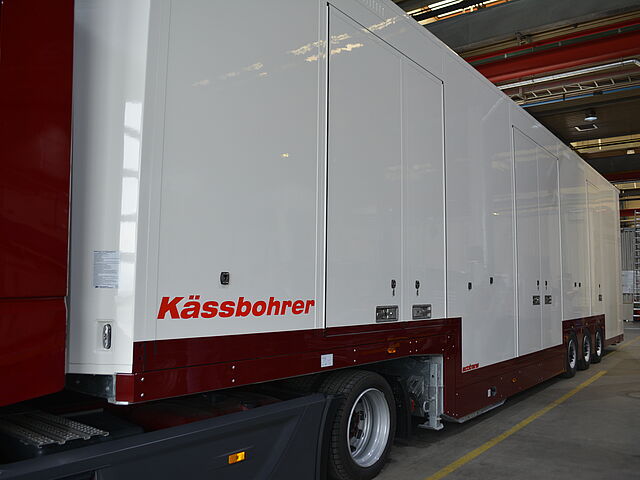

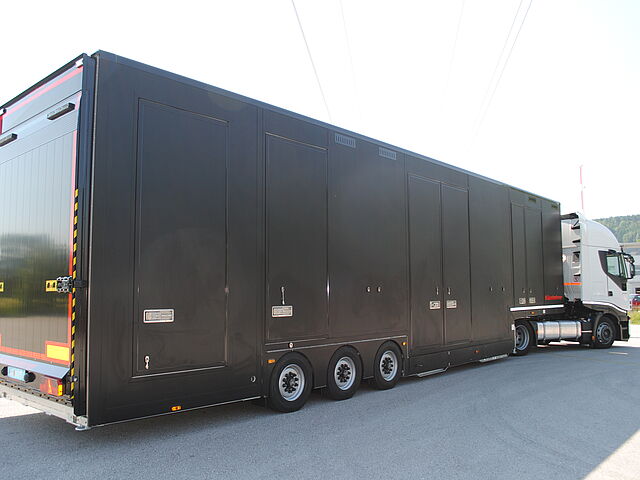

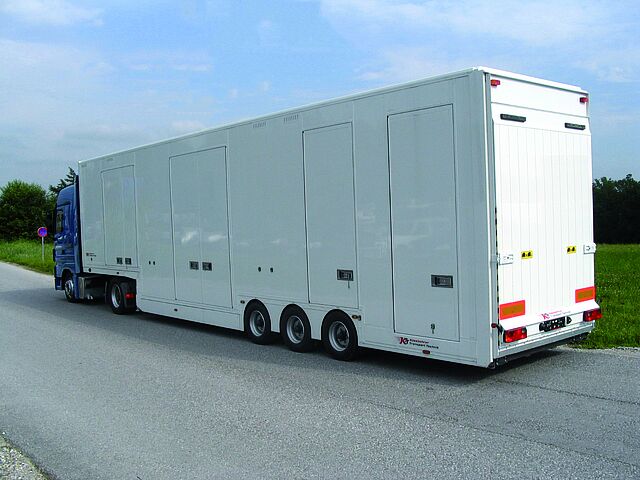

  • Box-body layout with light sandwich design: the ecotrans CVt model includes a hydraulic extension at the rear end

  • Particularly low drive-on and drive-over angles

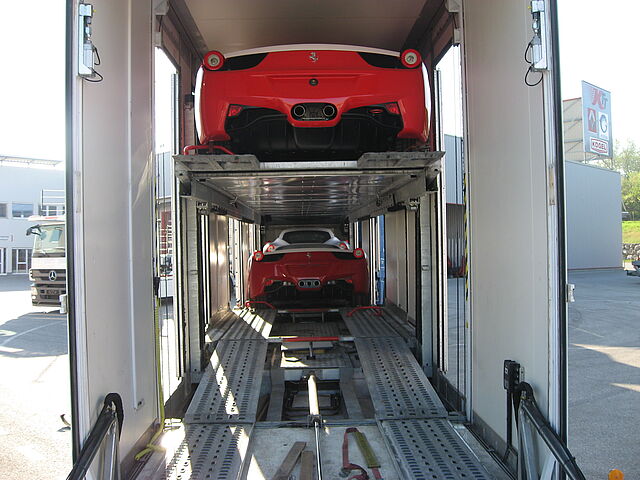

  • The spindle lifting systems for the upper platform are easy to use and offer low maintenance costs

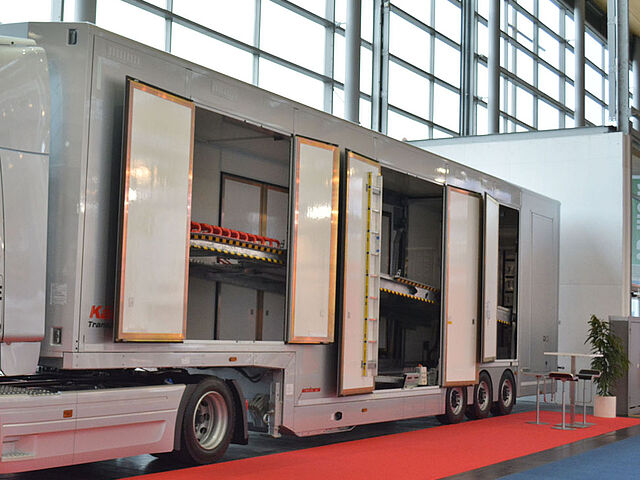

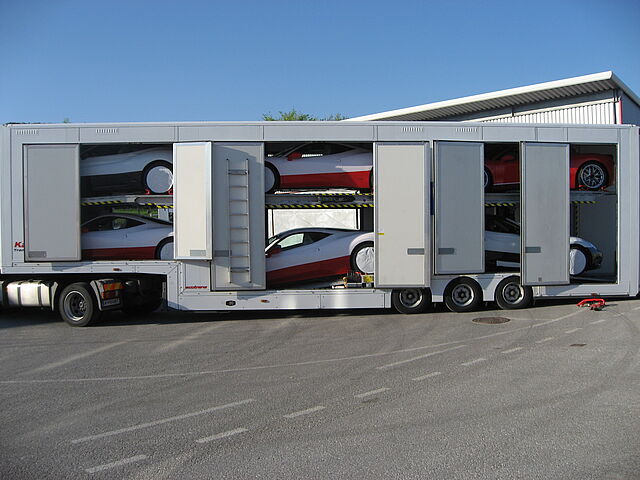

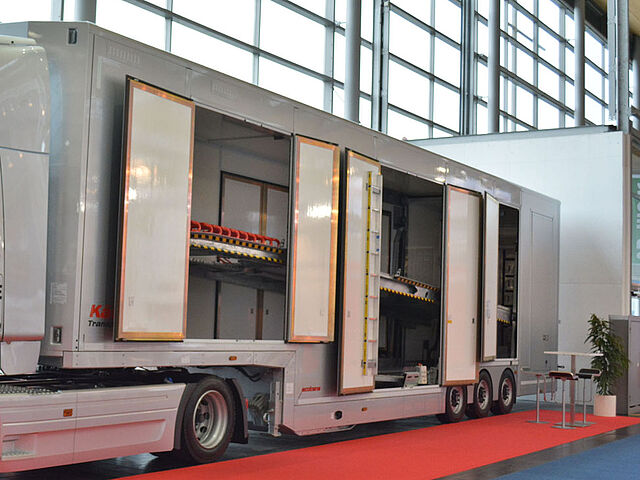

  • Individual position of the sidewall doors for a comfortable and easy loading

  • The ecotrans CVtg particularly stands out because of its two-part upper platform, which further improves the load factor and the resulting flexibility of storing positions

Weights & Dimensions

Net weight of the semitrailer:

Ecotrans CVtg: 12,500 – 13,200 kg
Ecotrans CVt: 11,800 – 12,300 kg

Wheel base (king pin – middle of rear axles)
7,950 mm

Overall semitrailer length
13,600 mm

Overall semitrailer width
2,550 mm

Entry height
2,400 mm

Passage width between the lifting systems

2,260 mm

Passage width between the wheels of the semitrailer axles

2,000 mm

Configuration

Standard equipment

  • High quality steel profiles in lightweight construction

  • Front and rear lifting mechanism inside supporting pillars with spindle lifting gears

  • Loading platforms are hot-dip galvanized

  • Hydraulic drive-on ramp from hollow aluminium structure with pneumatic locking

  • Doors: integrated rotary handles and spring fixing of open doors, door locks secured

  • Brake system with Anti Block System EBS and stability control assistant

Optional equipment

  • Two-piece upper platform (type CVtg)

  • Individual variations of the body structure (number, kind, position of the lateral doors)

  • Lifting and lowering system for semitrailer axles with remote actuation from the driver‘s cab

  • Hydraulic winch, including free-wheeling actuation, cover sheets, deflection and guiding rollers, wireless remote control

  • Wireless remote control for all hydraulic functions (type CVtg)

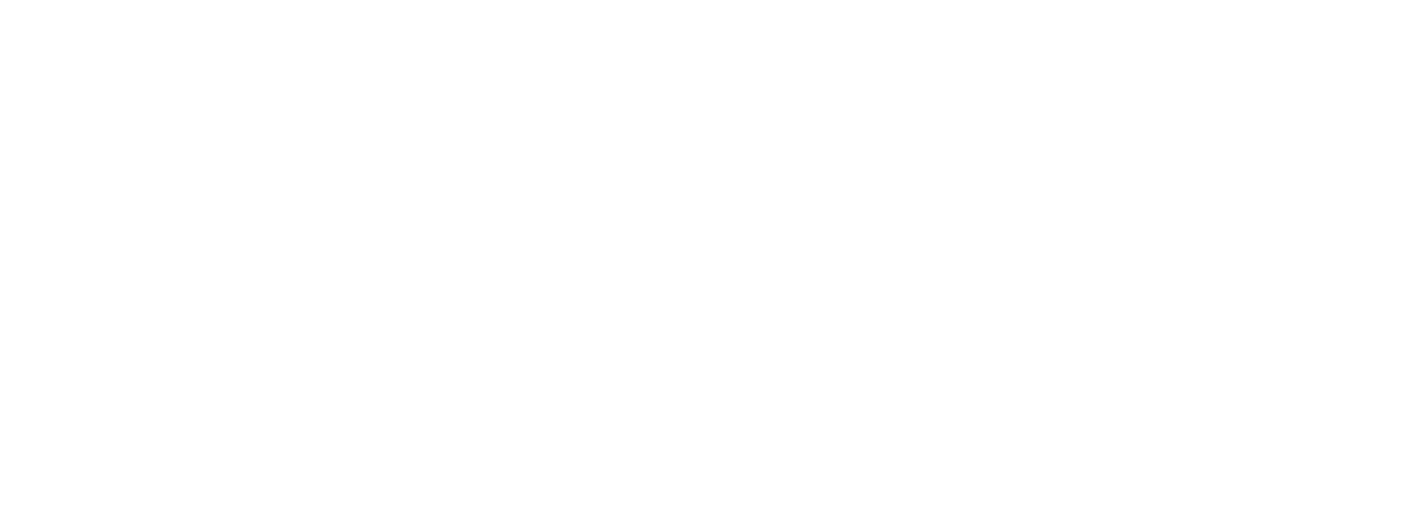

Observe national regulations!
Observe national regulations!
