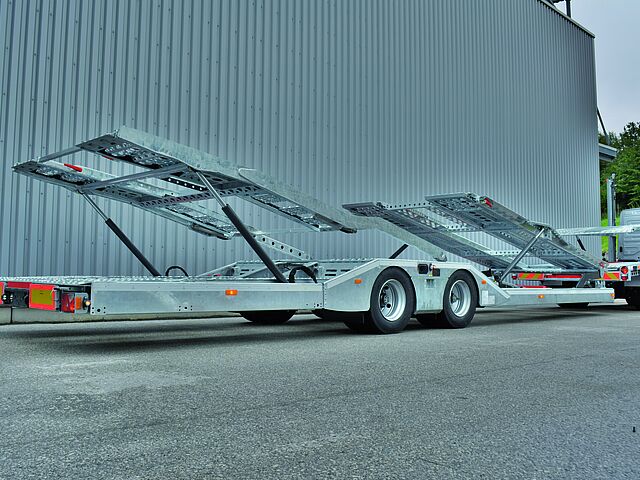

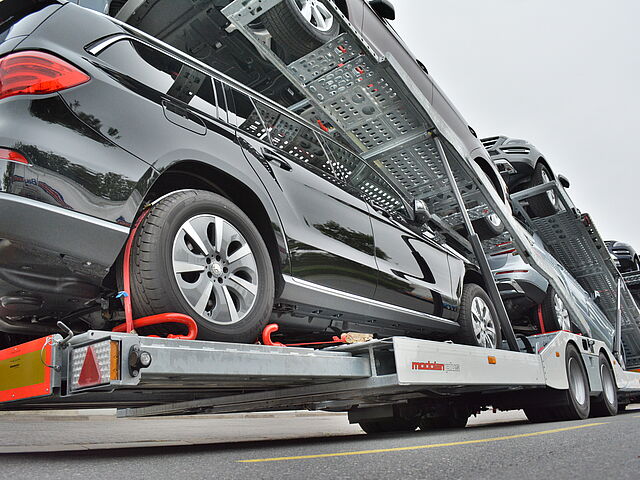

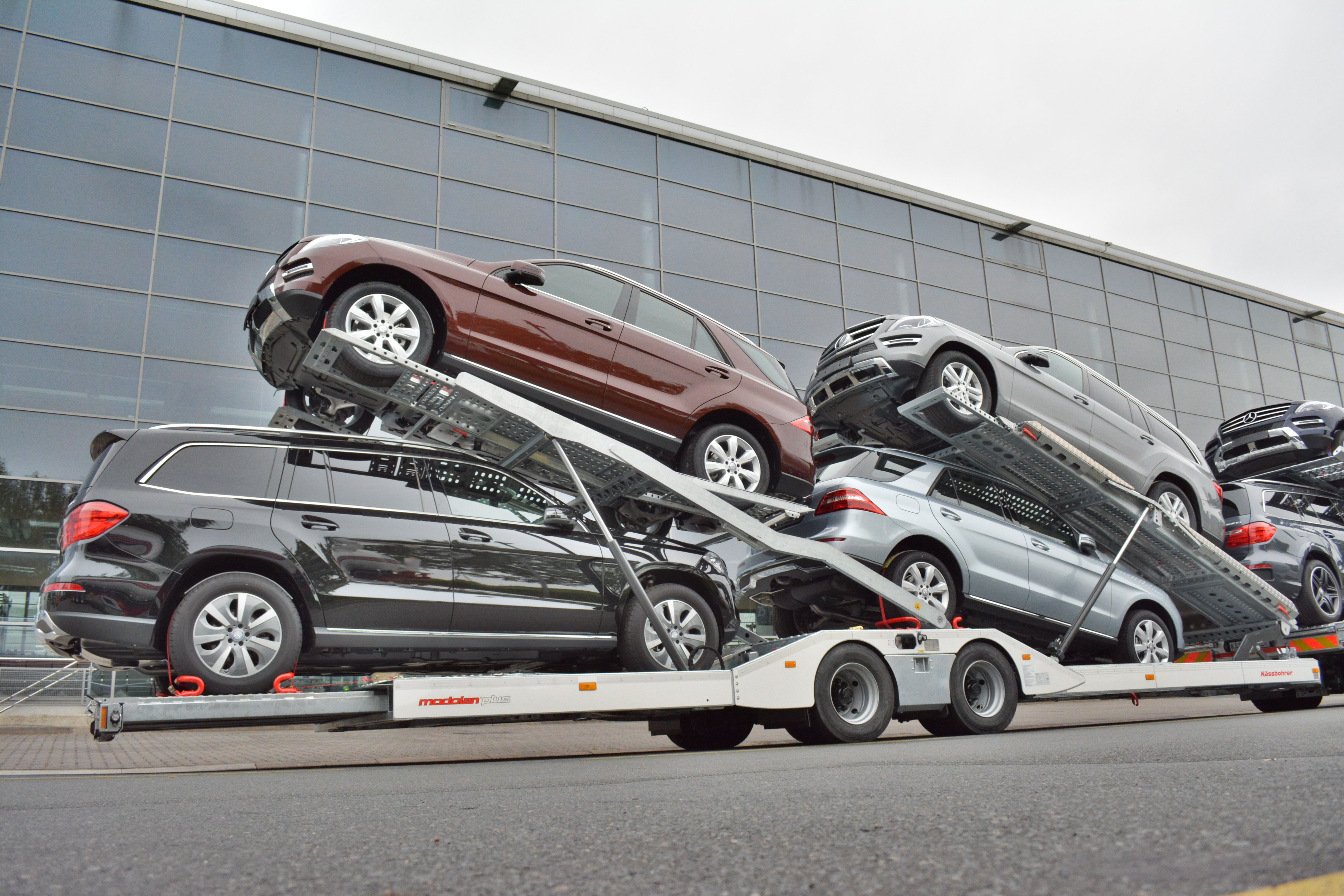

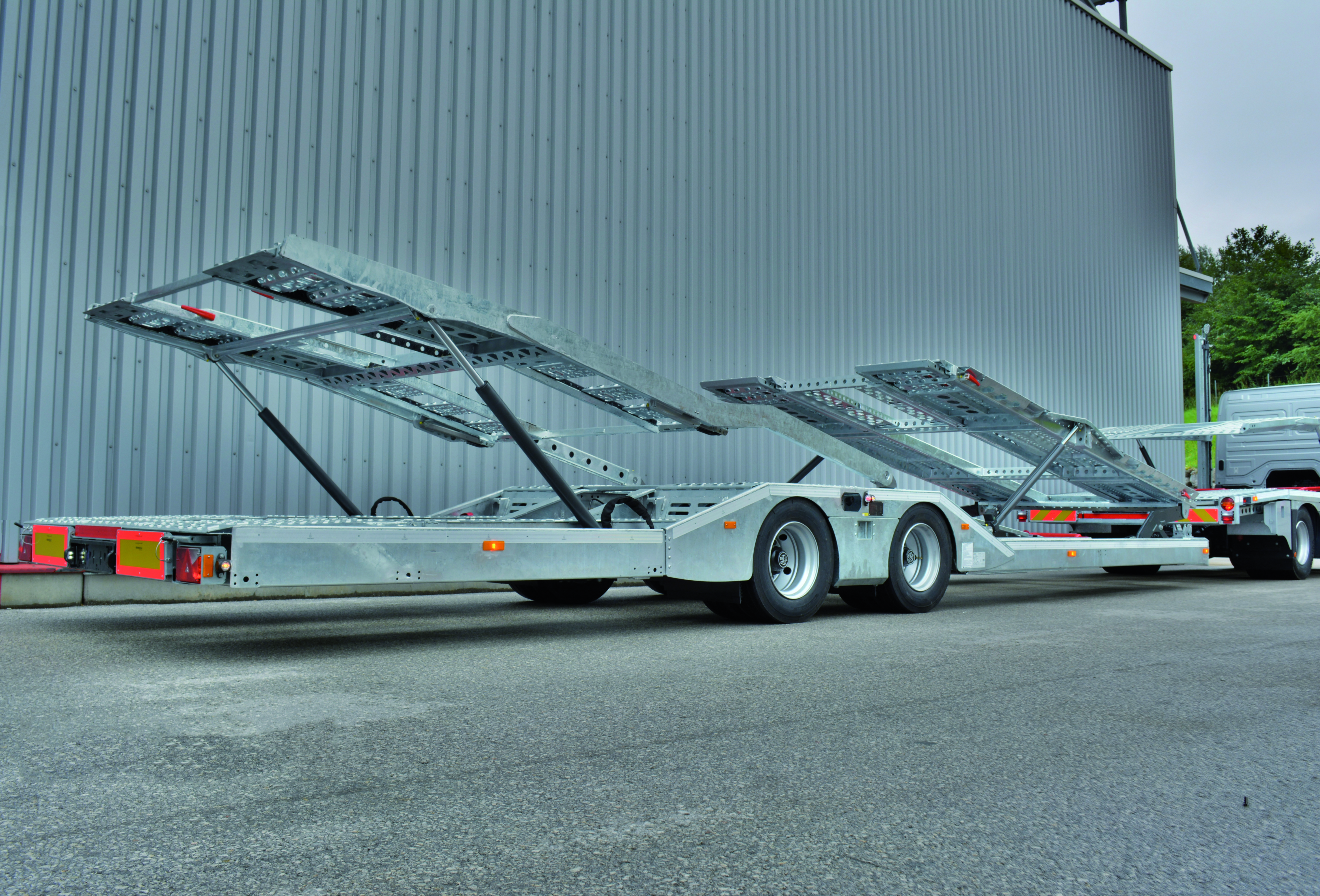

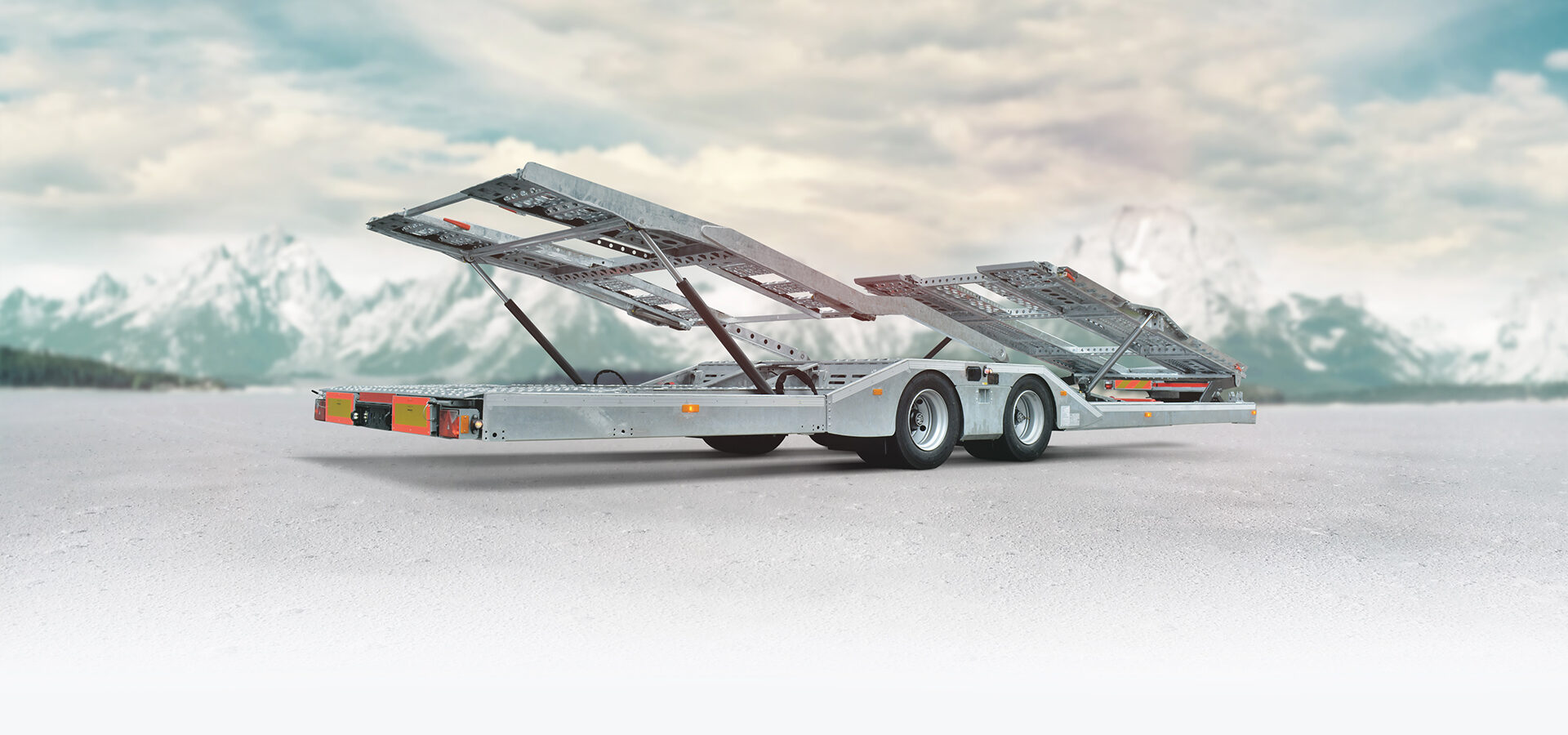

The modolan® offers an flexible range of load arrangement possibilities. It is the ideal solution to load large vehicles and for transports that require an extremely high load capacity.
Its compact and modular structure results in excellent cost effectiveness and operation efficiency
Its low net weight offers a high payload and results in economic fuel consumption
Easy and flexible loading and unloading operation
Choose between models go, eco and plus according to the individual requirements
Perfectly adapted for return and consolidated transports
Net weight of the superstructure:

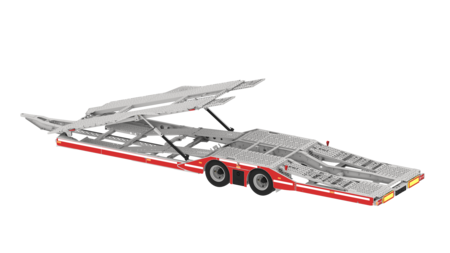

modolan®go: ca. 5,900 kg
modolan® eco: ca. 6,200 kg
modolan® plus: ca. 6,800 kg (depending on version)
Overall vehicle length:
ca. 11,950 mm
Overall vehicle width:
2,550 mm
Maximum permitted gross weight:
modolan®go: 12 – 18 t
modolan® eco: 16 – 18 t
modolan® plus: 18 t
Platforms clearance width:
2,280 mm between the hydraulic cylinders
Bolted, fully galvanized superstructure in lightweight steel construction with low chassis height
Hydraulic rear extension of the ramp box
1 pair of drive-on ramps (2,300 mm long)
Rear and sidewall LED marking lights

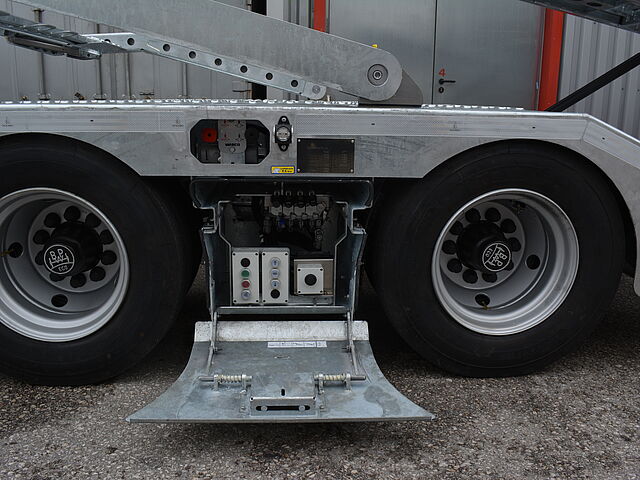

Air suspension with BPW tandem axles and twin tyres
Brake system with Anti Block System EBS and stability control assistant

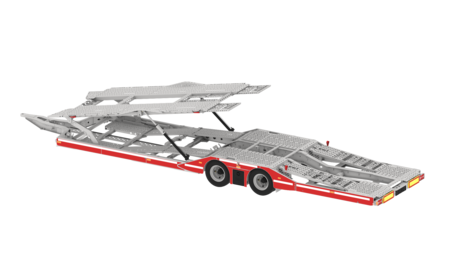

modolan®eco: front platform with hydraulic adjustment and automatic locks

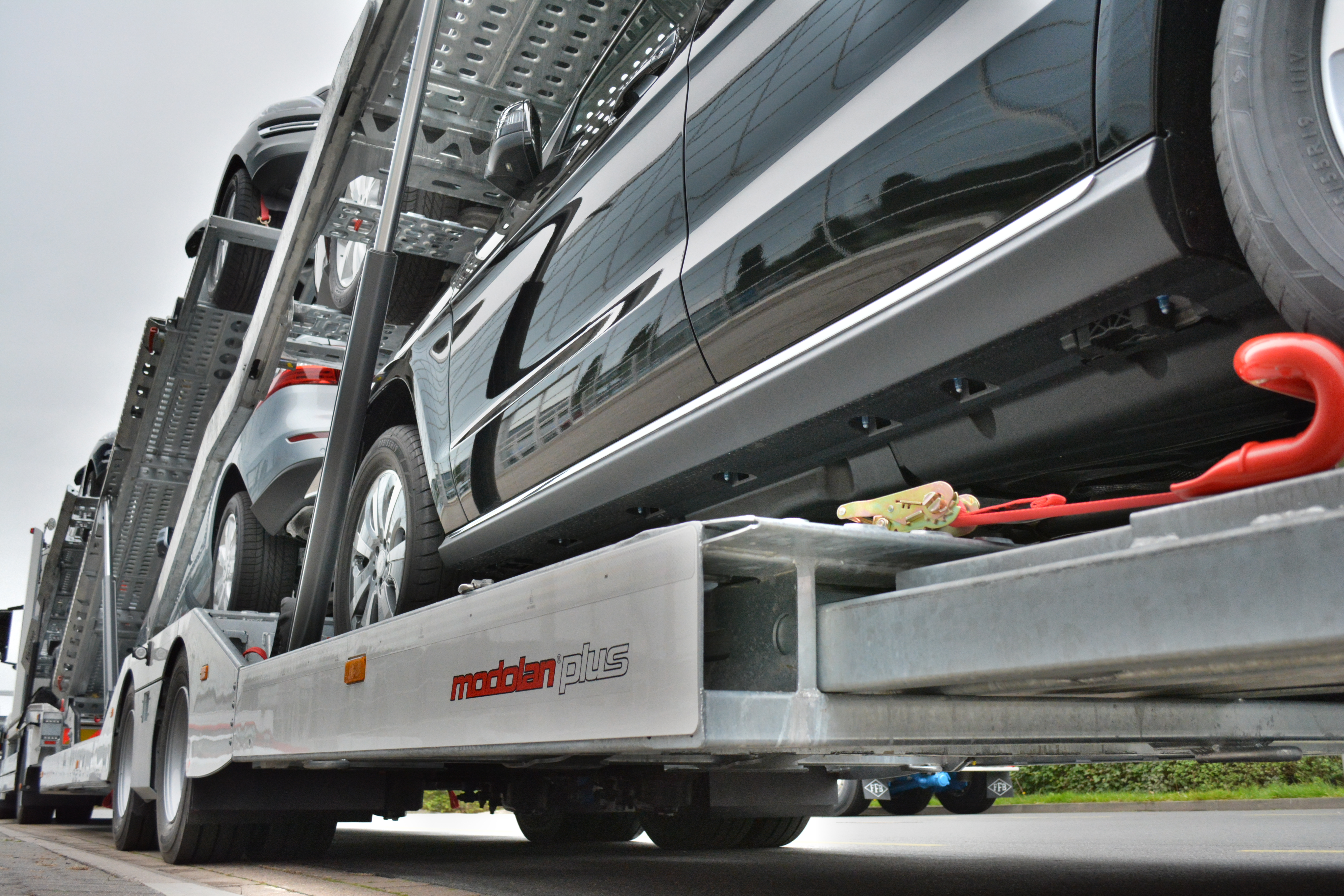

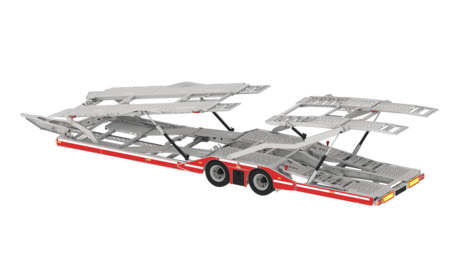

modolan® plus: front and rear platform with hydraulic adjustment and automatic locks
Return transport kit: additional lashing eyelets, lateral guides for load securing
Hydraulic winch, including free-wheeling actuation, cover sheets, deflection and guiding rollers, wireless remote control

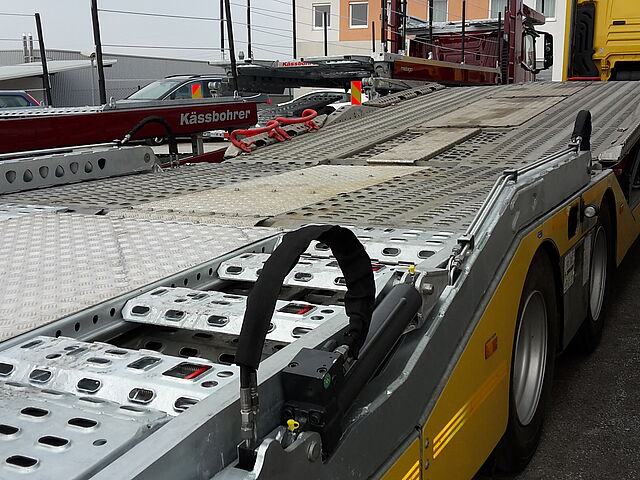

For enhanced operational safety, the center part of the platform can include aluminium anti-slip chequer plates
Rear kick-up ramps for an enhanced loading factor
Front lifting system for an even wider range of mixed loads
| Trailer | ||||||||
|---|---|---|---|---|---|---|---|---|---|
metago®pro | variotrans®pro | supertrans® | intago® | intago®MAX | modolan® | ecomode® T4-235 | ecomode® T2-180 | ||
Truck superstructure | metago®pro | × | × | × | × | × |
|
|
|
variotrans®pro | × | × | × | × | × |
|
|
| |
supertrans®pro | × | × | × | × | × |
|
|
| |
citytrans®pro | × | × | × | × | × |
|
|
| |
modolan® |
|
|
|
|
| × |
|
| |
ecomode® S1-075 |
|
|
|
|
|
|
|
| |
ecomode® S2-180 |
|
|
|
|
|
| × |
| |
ecomode® S2-260 |
|
|
|
|
|
|
| × | |
ecomode® S2-260 L |
|
|
|
|
|
|
|
| |
For more details and additional equipment options please refer to the respective data sheets. The illustrations are used as examples and might show vehicles with optional equipment. We reserve the right to make changes due to errors or based on technical progress.
