Truck Superstructure

Enhanced modality

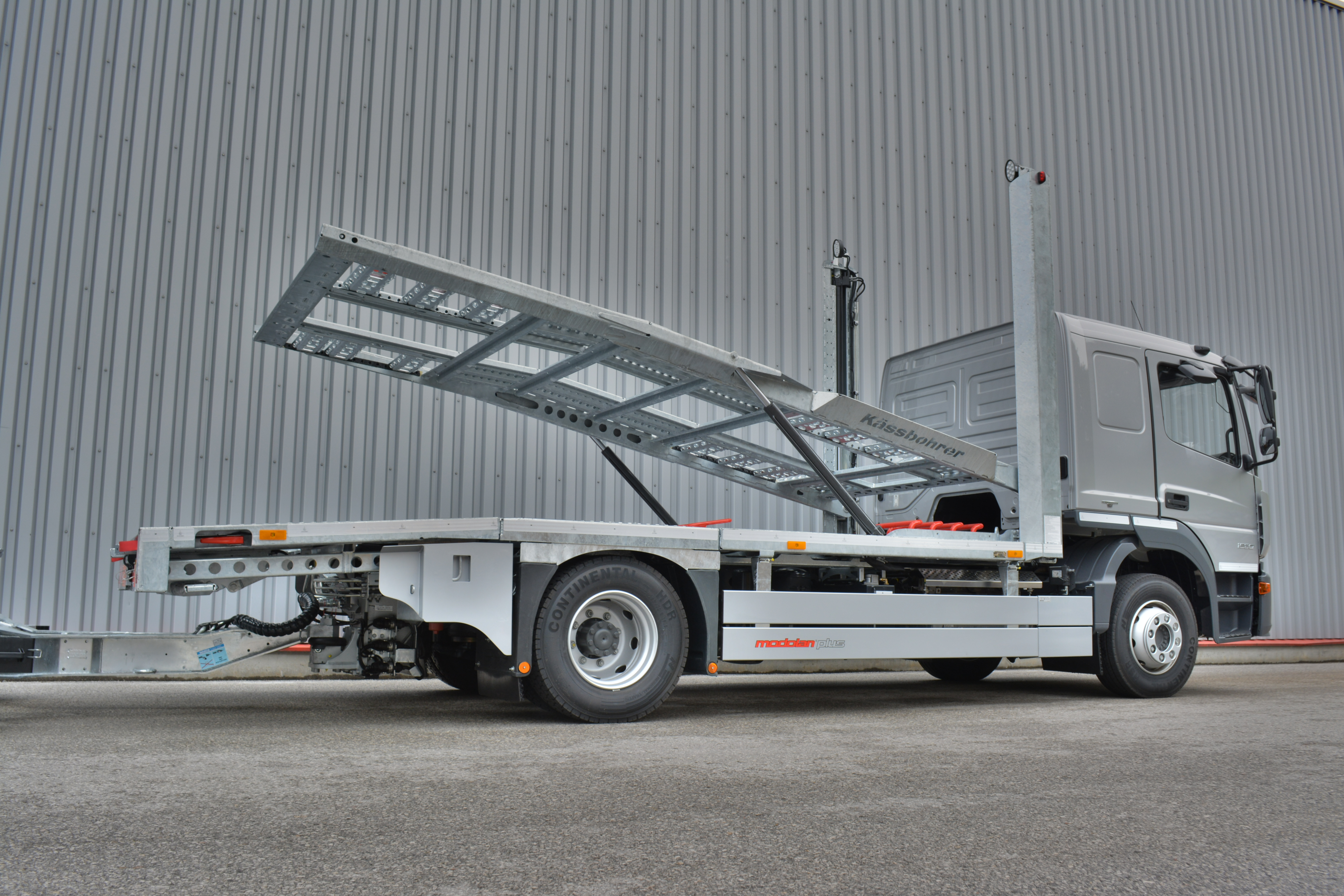

The modolan® model offers an extraordinarily flexible load arrangement. The individual layout represents the ideal solution for economically transporting large vehicles like SUV‘s, mobile homes, caravans, box wagons and vans.

Its compact and modular structure results in excellent cost effectiveness and operation efficiency
Very simple to load and unload
Choose between models go, eco and plus according to your individual requirements
Perfectly adapted for return and consolidated transports due to the large range of combinations

Weights & Dimensions

Net weight of the superstructure

modolan®go: ca. 1,700 - 1,850 kg

modolan®eco: ca. 2,500 - 2,900 kg

modolan®plus: ca. 2,700 - 3,100 kg

Wheel base
ca. 4,100 - 4,300 mm

Overall vehicle length
ca. 8,000 mm

Overall vehicle width
2,550 mm

Maximum permitted gross weight

modolan®go: 15 – 18 t

modolan® eco: 15 – 18 t

modolan® plus: 15 – 18 t

Platforms passage width:

2,225 mm between the hydraulic cylinders

2,090 mm upper platform between the pillars

2,180 mm lower platform between the pillars

Configuration

Standard equipment

Bolted, fully galvanized superstructure in lightweight steel construction with low chassis height, including side protection equipment
Lower platform: Rear tracks manually extendable hydraulically to the rear end

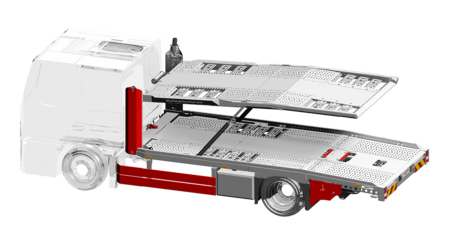

modolan®eco: kick-up platform with hydraulic adjustment at the rear end and automatic locks

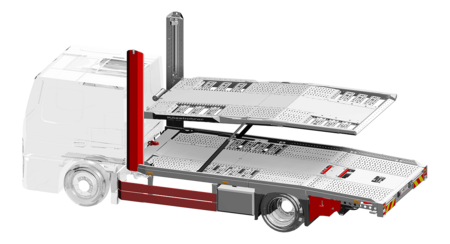

modolan®plus: kick-up platform with hydraulic adjustment at the front and at the rear end and automatic locks
Low-wear Kässbohrer hitch ball coupling wheel houses with spray mist prevention

Optional equipment

Return transport kit: additional lashing eyelets, lateral guides for load securing
Hydraulic winch, including free-wheeling, covers, deflection and guide rollers and wireless remote control
Center part of the platform with aluminium chequer plates for enhanced operational safety
Additional telescopic access ramps for loading and unloading the individual truck or while the trailer is at a 90° angle. Average drive-on angle is 13° (depending on the truck chassis)

Loading example
Possible combinations

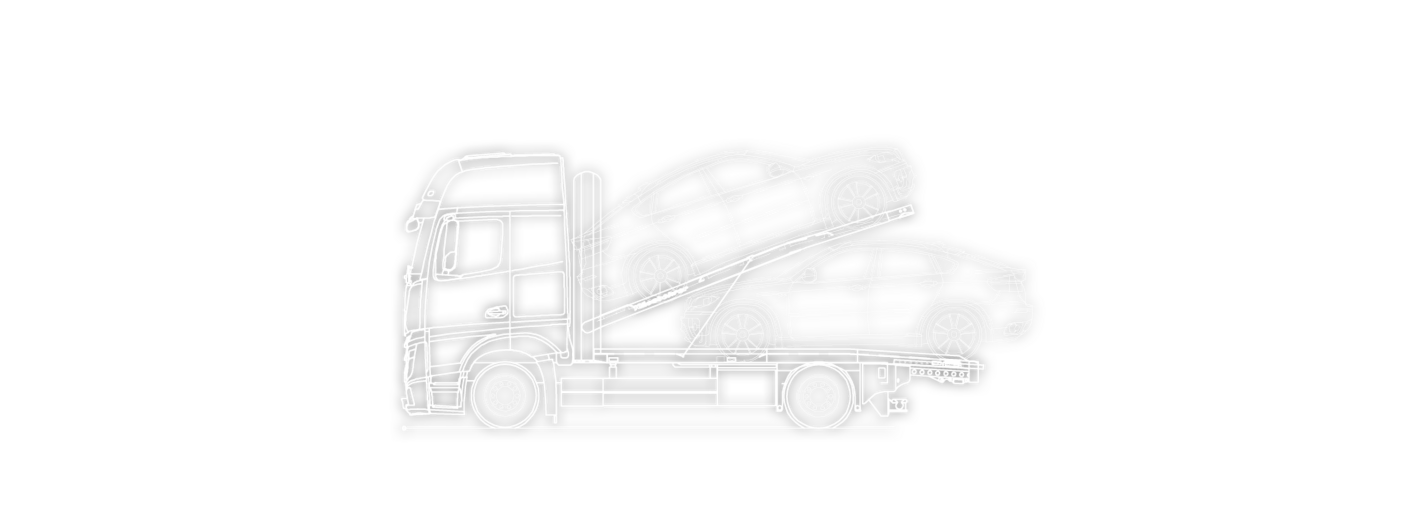

Loading example modolan® plus with 4,00 m height. Observe national regulations!

		Trailer
		metago®pro	variotrans®pro	supertrans®	intago®	intago®MAX	modolan®	ecomode® T4-235	ecomode® T2-180
Truck superstructure	metago®pro	×	×	×	×	×
	variotrans®pro	×	×	×	×	×
	supertrans®pro	×	×	×	×	×
	citytrans®pro	×	×	×	×	×
	modolan®						×
	ecomode® S1-075
	ecomode® S2-180							×
	ecomode® S2-260								×
	ecomode® S2-260 L

more about modolan
