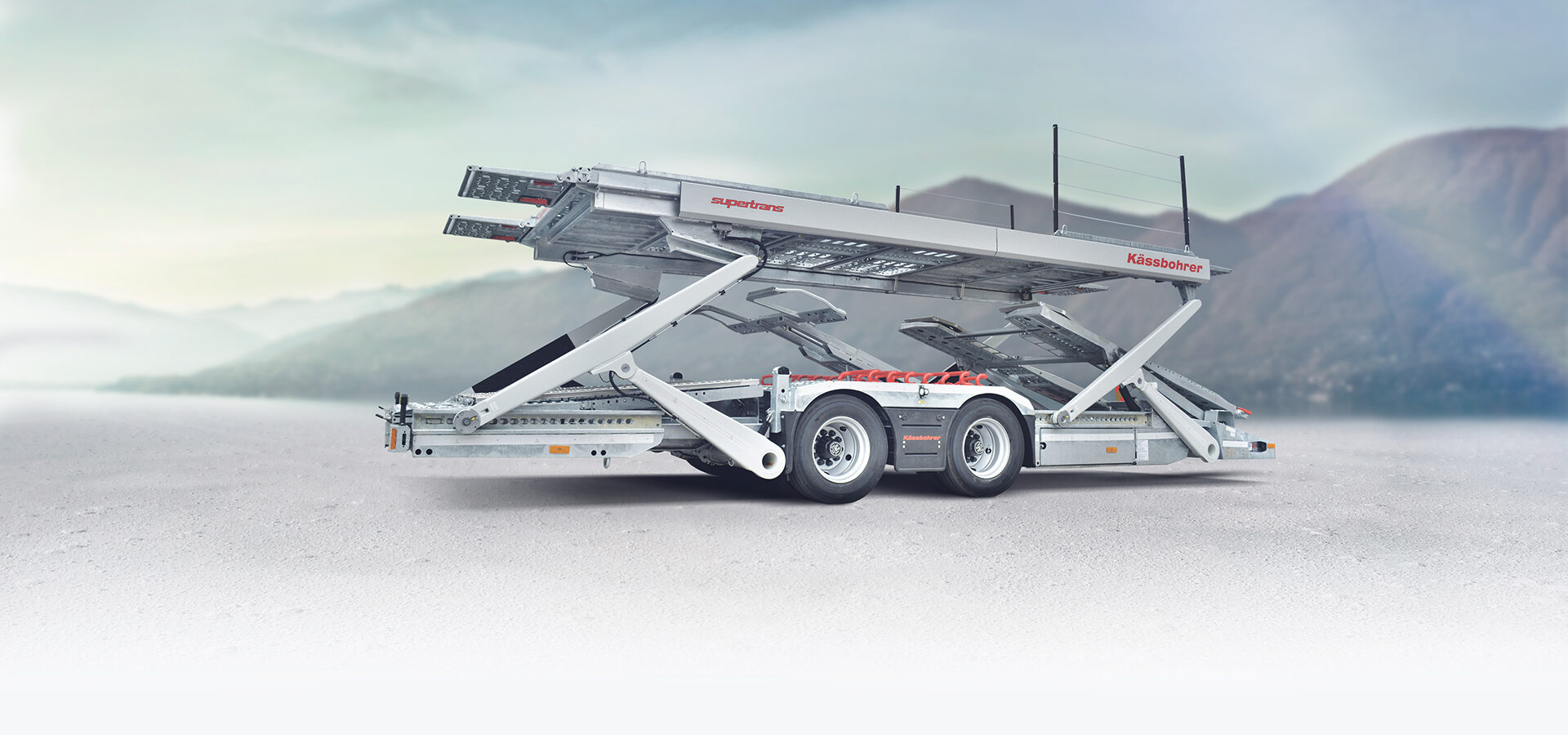

Twin-axle trailer

Multifunctional and robust

Our supertrans® pro trailer offers a high load capacity and an outstanding driving stability. And if durability and operations speed are important criteria for you, the supertrans® is the best.



  • The combination of high load capacity, the two-arms lifting system and the twin-tyred axle unit makes the supertrans® pro a jack-of-all-trades for flexible loading and the transport of mixed loads

  • This vehicle offers maximum payload and optimum drive-through width thanks two twin tyres, as well as safe loading of wider vehicles

  • Easy operation results in fast loading and unloading and high efficiency

  • Especially flexible and suitable for transporting wide and heavy vehicles

Weights & Dimensions

Net weight of the superstructure

min. 8.150 – max. 9.000 kg

Wheel base
1.310 mm

Overall vehicle length
11.260 mm

Overall vehicle width
2.550 mm

Entry height
2.060 mm

Platforms passage width
2.380 mm lower platform, 2.390 mm upper platform

Configuratiion

Standard equipment

  • Bolted light metal construction, fully galvanized

  • Hydraulic system with automatic locks

  • Front and rear two-armed lifting system with pneumatic locks

  • Front drive-on and loading platform, with hydraulic height adjustment at front and rear end, and with manual extension at front end

  • Upper platform front and rear extensions hydraulically movable

  • Ramp box with hydraulic rear extension

  • Vehicle lighting completely LED technology

  • Air suspension with BPW tandem axles and twin tyres

  • Brake system with Anti Block System EBS and stability control assistant

Optional equipment

  • Pipes for automatic lubrication

  • Additional adjustable pans in the upper loading platform

  • Hydraulic drawbar, steplessly telescopable

  • Intermediate kick-up ramp with hydraulic height adjustment (1100 mm extendable)

  • Integrated stacking platform at the rear end of the upper platform

  • Front drive-on and loading platform with additional hydraulic rear extension

Loading example supertrans ® with 4,00 m height. Observe national regulations!
Loading example supertrans ® with 4,00 m height. Observe national regulations!
