Truck Superstructure

Multifunctional and robust

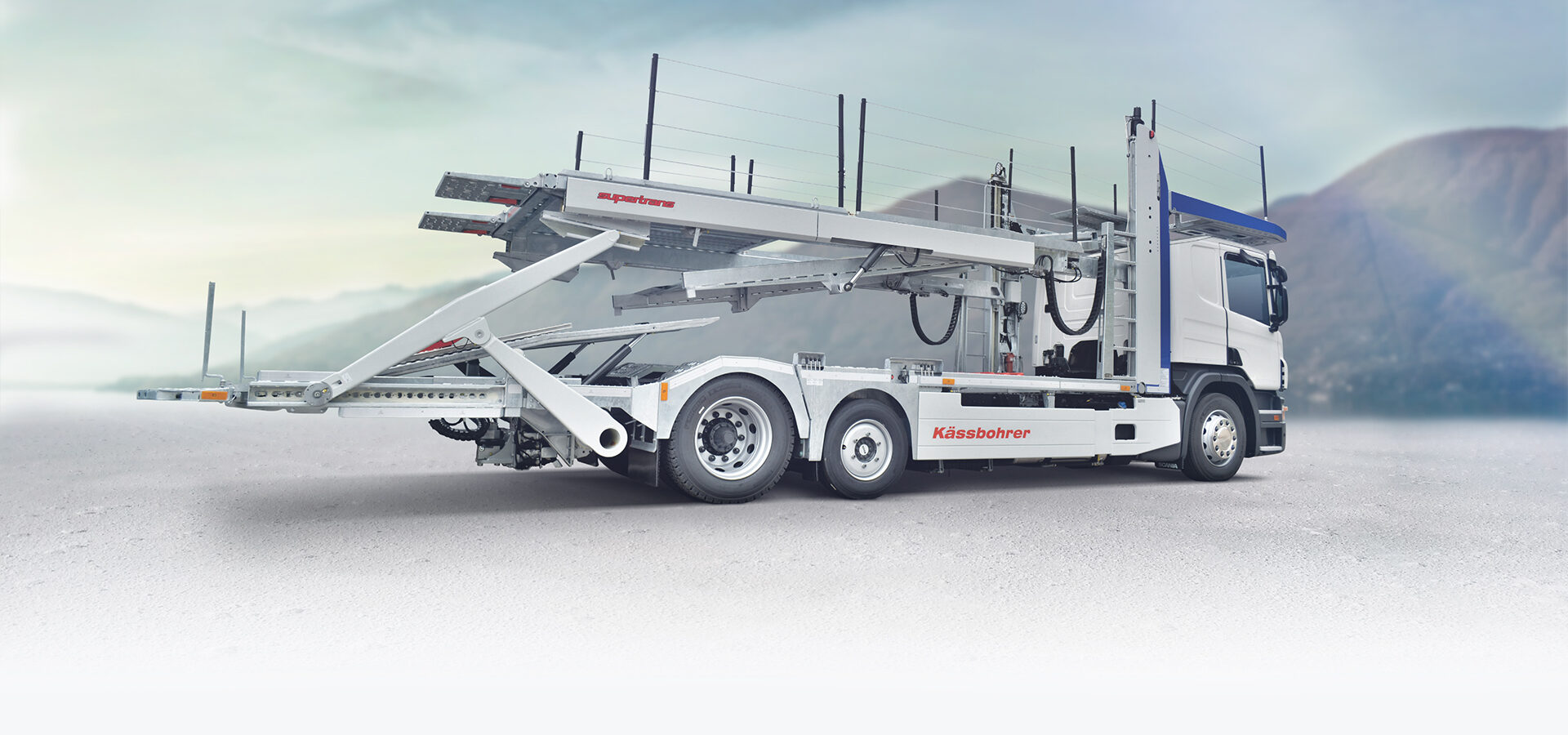

The supertrans® pro is a power horse that offers maximum driving stability. It stands-out by its robustness and multifunctionality.



  • High lifting capability offers the transport of vehicles with an axle load up to 4.5 tons

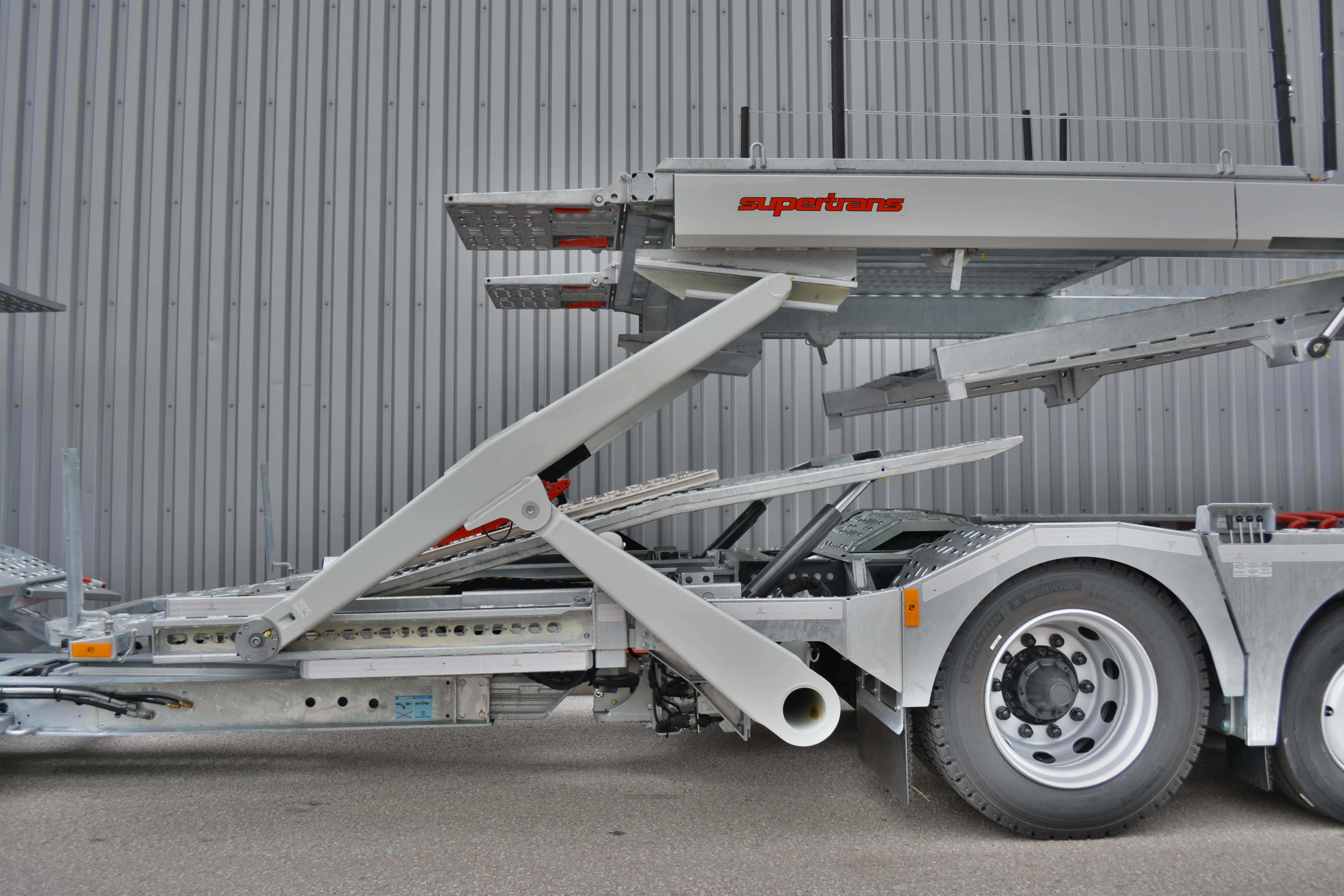

  • Its two-arms lifting system, hydraulic kick-up ramps and adjusting options make the most complicated loading requirements quick and easy

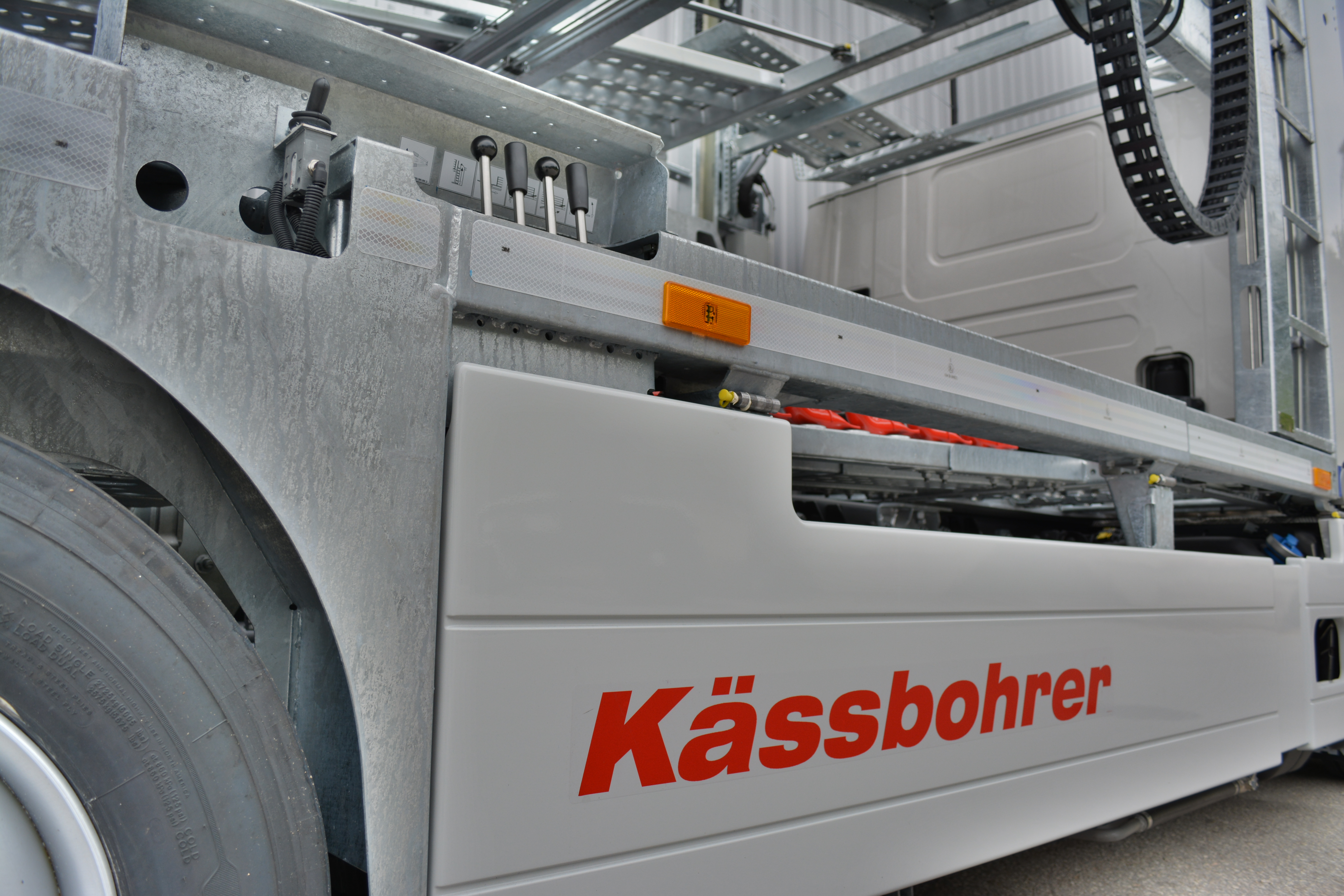

  • Features an ergonomic layout of the hydraulic controls to give you a perfect view of the moving platform components

  • Pillar group and wheel housings designed for maximum load height

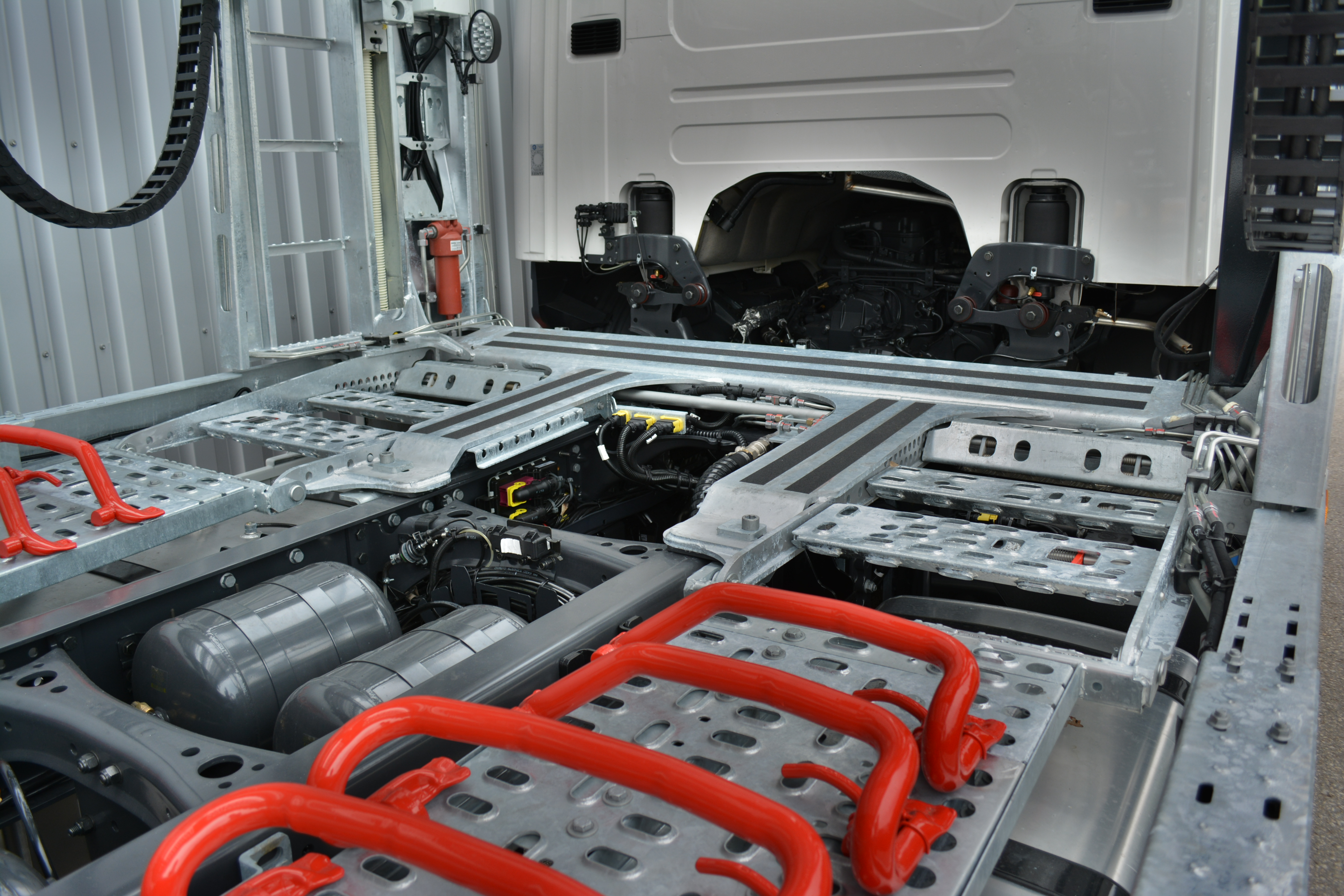

  • Features an optimized mounting space for the original fuel tank or for the Kässbohrer fuel reservoir solutions

  • Perfect for the transport of mixed loads and for local and distribution operation

Weights & Dimensions

Net weight of the superstructure

min. 4.700 - max. 5.350 kg

Wheel base
5.300 - 5.600 mm

Overall vehicle length
11.300 mm

Overall vehicle width
2.550 mm

Entry height
1.900 mm

Platforms passage width
2.380 mm lower platform, 2.390 mm upper platform

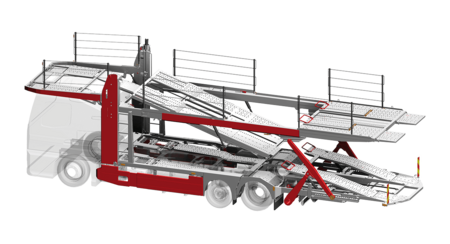

supertrans® pro B5pro -
supertrans® pro B5pro

Configuration

Standard equipment

  • Bolted light metal construction, fully galvanized
  • Hydraulic system with automatic locks
  • Upper platform with front supporting pillars with lifting spindles Rear two-arms lifting system wtih pneumatic bolt locks Perforated, galvanized anti-slip steel rails
  • Upper platform‘s rear extension hydraulically extendable Optimal loading height due to low superstructure layout Low-wear Kässbohrer hitch ball coupling
  • Lower rear platform with hydraulic extension (750 mm), kick-up ramps with hydraulic height adjustment
  • Non-slip ladders on both sides

Optional equipment

  • Automatic lubrication system

  • Hydraulic winch including free-wheeling, covers, deflection and guide rollers and wireless remote control

  • Drive-on ramps towards the upper front platform with manual extension (1,000 – 1,500 mm)

  • Drive-on ramps towards the upper front platform, shortened (1,200 mm)

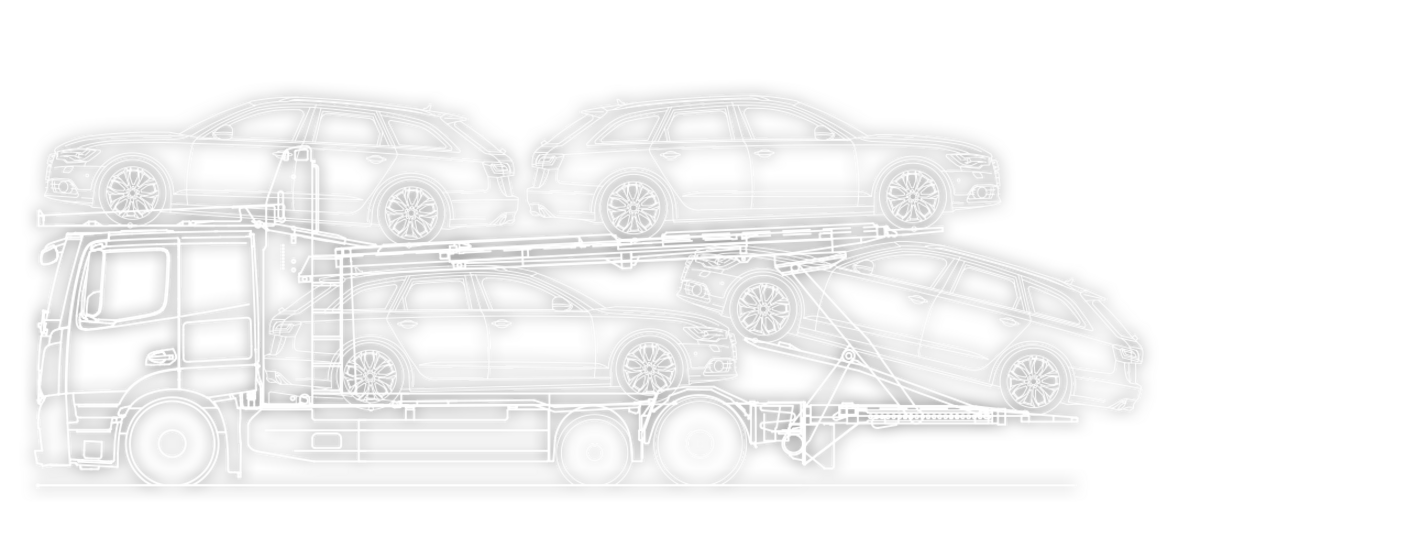

Loading example supertrans®pro type B5 with 4,00 m height. Observe national regulations!
Loading example supertrans®pro type B5 with 4,00 m height. Observe national regulations!
