Truck superstructure

Protection and safety for the vehicles to be transported

The ecomode performance line includes closed motor vehicles and central-axle trailers, especially for the safe transport of particularly exclusive limousines, precious prototypes, individual exhibition vehicles and vintage cars.



  • Maximum protection and safety for the vehicles to be transported

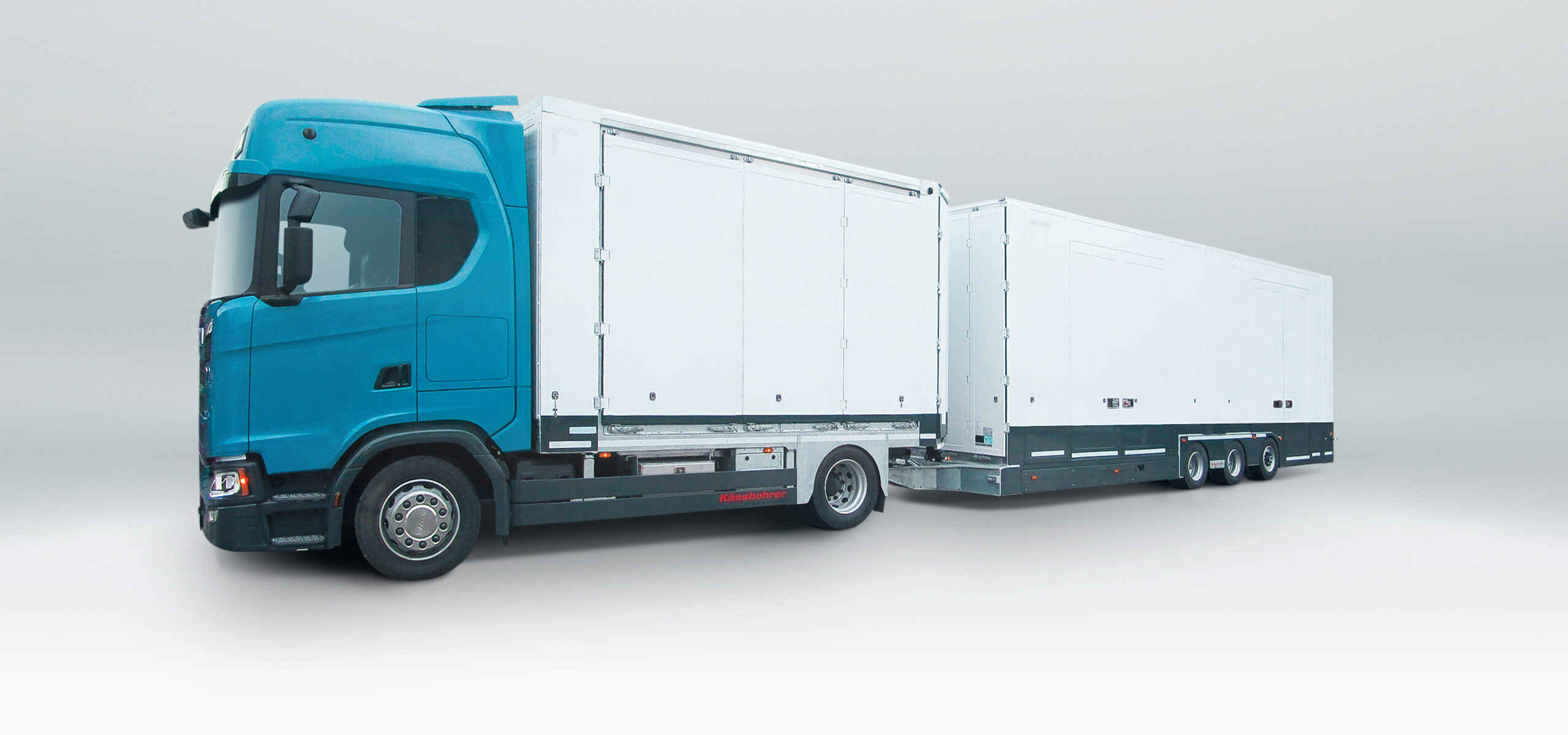

  • The ecomode performance S2-180 is combined with trailer model T4-235. Loading is carried out through the trailer. The folding doors at the rear can be opened easily
  • Comfortable loading of vehicles with low ground clearance
  • Large folding doors on both sides of the vehicle provide easy access and good visibility to the loaded vehicles
  • Flexible in use, especially for urban and distribution transport

Weights and dimensions

Technically permissible maximum mass

18,000 kg

Maximum payload

5,900 kg

Length of inside tracks

5,300 mm

Entry width

2,300 mm

Overall vehicle length

Max. 7,740 mm

Notice

The S2-180 is combined with the T4-235. Stand-alone operation is not possible

Configuration

Standard equipment

  • Fully hot-dip galvanised lower loading platform with two pairs of pan fields and seven pairs of pan covers
  • Fully hot-dip galvanised upper loading platform with four spindle lifting pillars
  • Box body with double doors on left and right side, rear door as folding door
  • Stainless steel tool box

Optional equipment

  • Radio remote control for all ecomode functions

  • Cable winch installed at the front end of the lower platform

  • Central door locking system

  • Multicolour lacquering / metallic lacquering

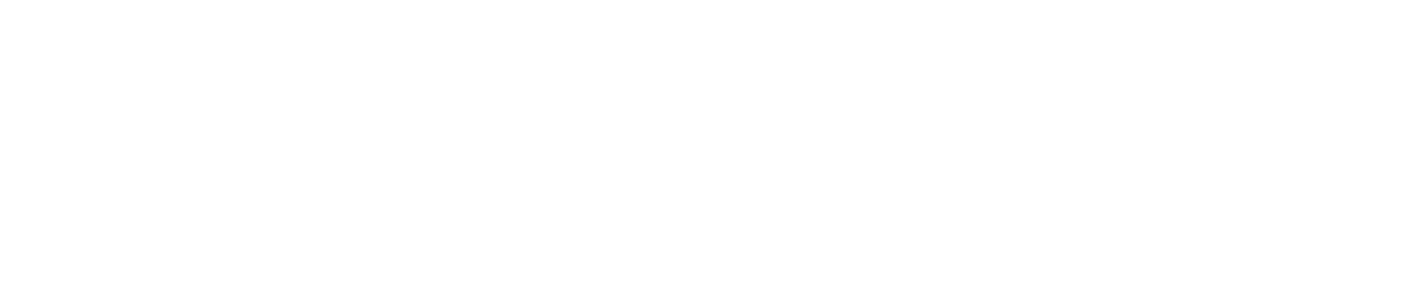

Observe national regulations!
