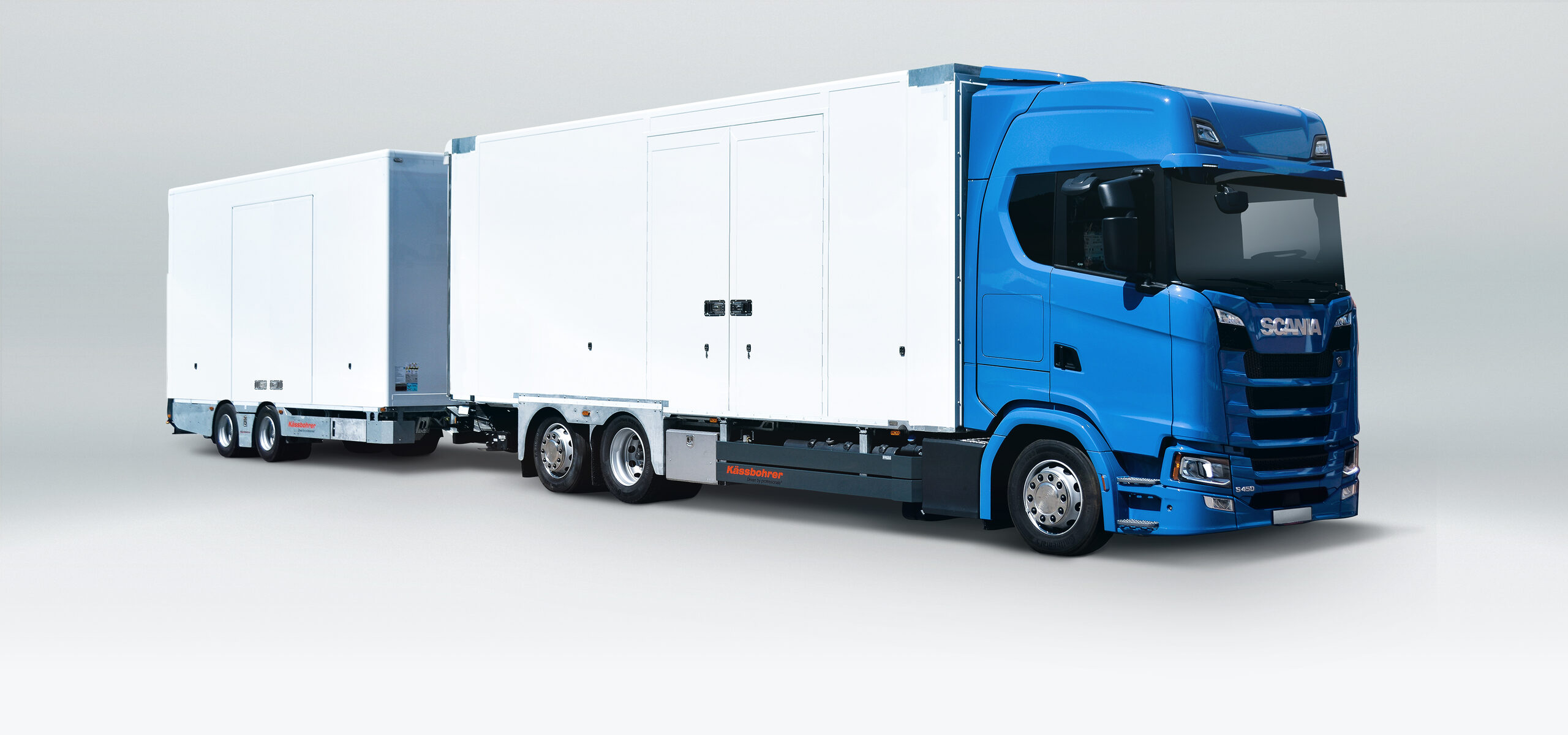

Truck superstructure

Flexible in use, especially for urban and distribution transport

The ecomode performance line includes closed motor vehicles and central-axle trailers, especially for the safe transport of particularly exclusive limousines, precious prototypes, individual exhibition vehicles and vintage cars.



  • Maximum protection and safety for the vehicles to be transported
  • The ecomode performance S2-260 offers stand-alone operation and combined operation with trailer modes T2-180
  • Comfortable loading of vehicles with low groud clearance
  • Large folding doors and hinge doors with optional central locking system on both sides of the vehicle provide easy access and good visibility to the loaded vehicles
  • Loading is carried out by a hydraulic tail lift
  • Flexible in use, especially for urban and distribution transport

Weights and dimensions

Technical permissible maximum mass

26,000 kg

Maximum payload

8,500 - 9,000 kg (depending on equpment)

Length of inside tracks

9,750 mm

Entry width

on lifting platform: 2,150 mm

between bottom pillars: 2,300 mm

Overall vehicle length

Max. 10,650 mm

Notice

The S2-260 can be combined with the T2-180.

Configuration

Standard equipment

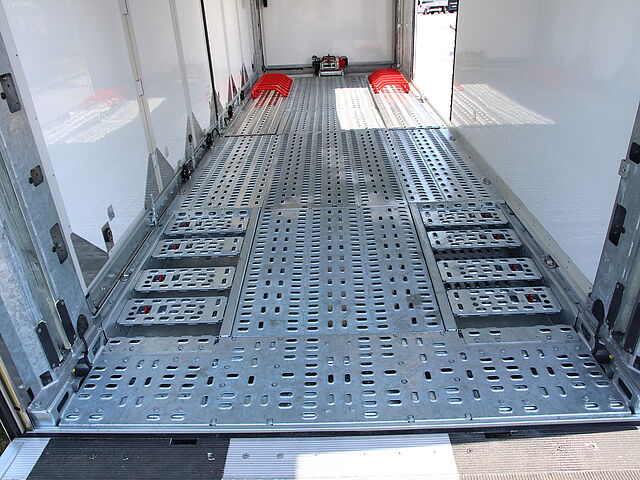

  • Fully hot-dip galvanised lower loading platform with two pairs of pan fields and ten pairs of pan covers
  • Fully hot-dip galvanised upper loading platform with four spindle lifting pillars
  • Box body with double doors on left and right side, hydraulic tail lift
  • LED loading area lighting

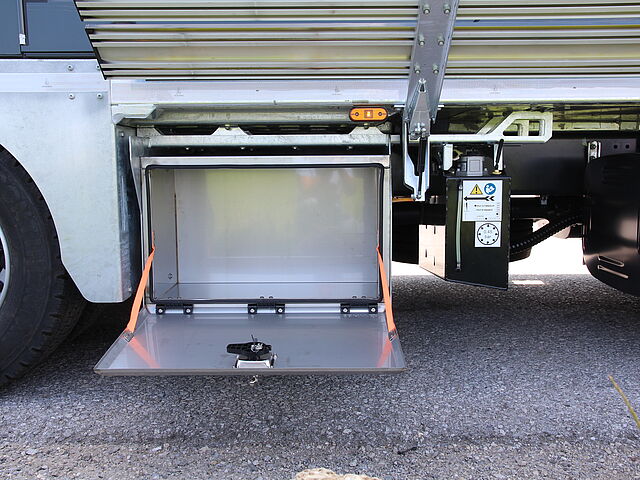

  • Stainless steel tool box

Optional equipment

  • Radio remote control for all ecomode functions

  • Cable winch installed at the front bottompillar support

  • Central door locking system

  • Tie-down eyelets with load securing certificate for general cargo transport
Observe national regulations!
Observe national regulations!



Trailer

metago®pro

variotrans®pro

supertrans®

intago®

intago®MAX

modolan®

ecomode® T4-235

ecomode® T2-180

Truck superstructure

metago®pro

×

×

×

×

×







variotrans®pro

×

×

×

×

×







supertrans®pro

×

×

×

×

×







citytrans®pro

×

×

×

×

×







modolan®











×





ecomode® S1-075

















ecomode® S2-180













×



ecomode® S2-260















×

ecomode® S2-260 L
















-
-
-
-
-

more about Ecomode Performance S2-260

We are happy to help!

Download

Contact

+43 622 528100285

office@kaessbohrer.at

For more details and additional equipment options please refer to the respective data sheets. The illustrations are used as examples and might show vehicles with optional equipment. We reserve the right to make changes due to errors or based on technical progress.

Clients of Kässbohrer receive more!



Your decision gives you the security to own and use a vehicle produced by a company who is famous in the market for the quality and the durability of its products.



Kässbohrer transporter superstructures are compatible with chassis of all leading truck manufacturers. The design of our car carriers gives you the possibility to combine trucks and trailers from different models and to adjust them to fit your individual needs.



All the standard spare parts are available in our service center and at our contractual partners. You can also check our online catalogue for more detailed information and for a trouble-free ordering process.



Repairs are carried out quickly and reliably at our headquarters workshop in Eugendorf (Austria) and the authorized workshops along major European transport routes.
