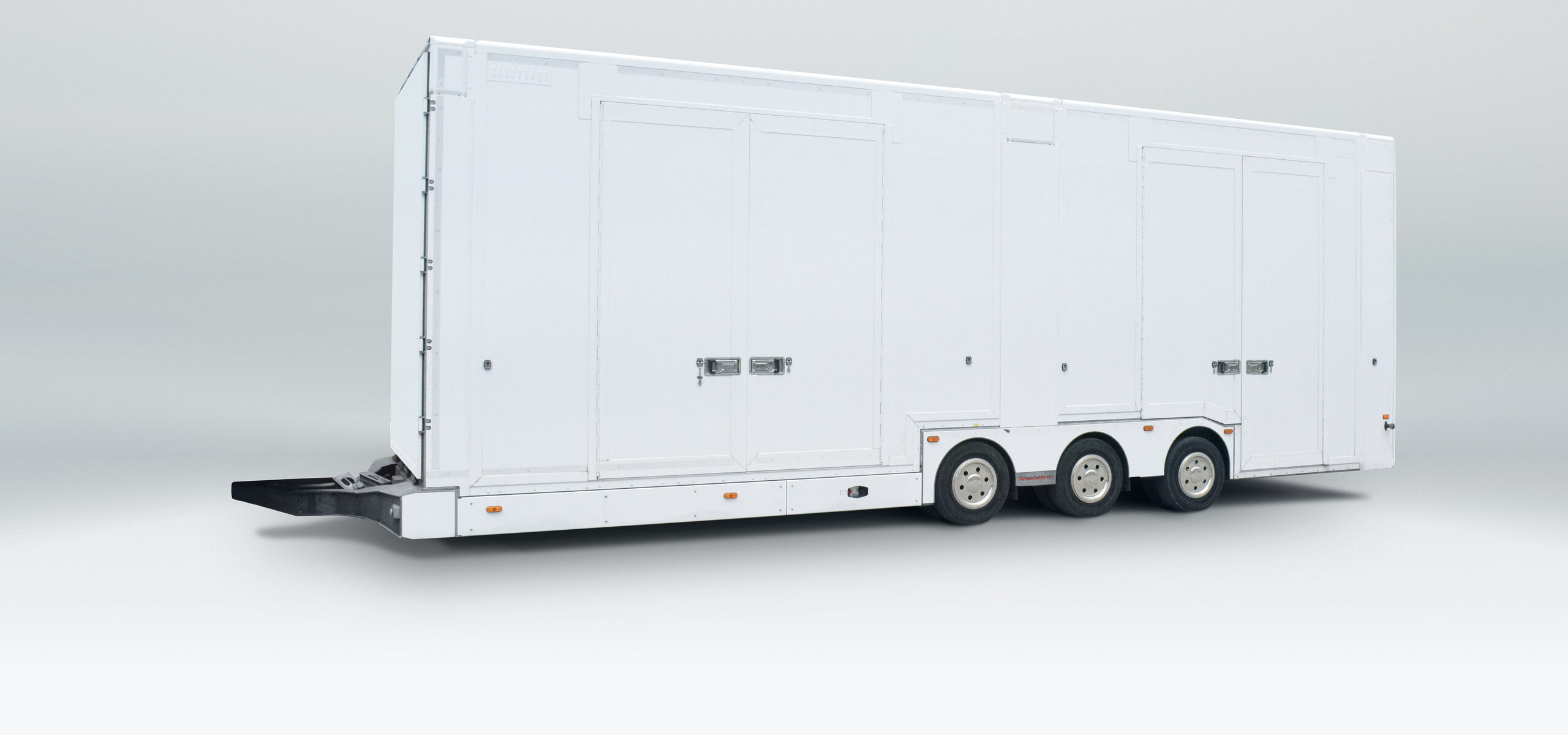

Ecomode Performance T4-235

Trailer

Comfortable loading of vehicles with low ground clearance

The ecomode performance line includes closed motor vehicles and central-axle trailers, especially for the safe transport of particularly exclusive limousines, precious prototypes, individual exhibition vehicles and vintage cars.

Coupled to S2-180, the carrier offers a load factor of "6" or space for up to 5 SUV's
Comfortable loading of vehicles with low ground clearance
Upper lifting platform with fast-moving telescopic cylinders

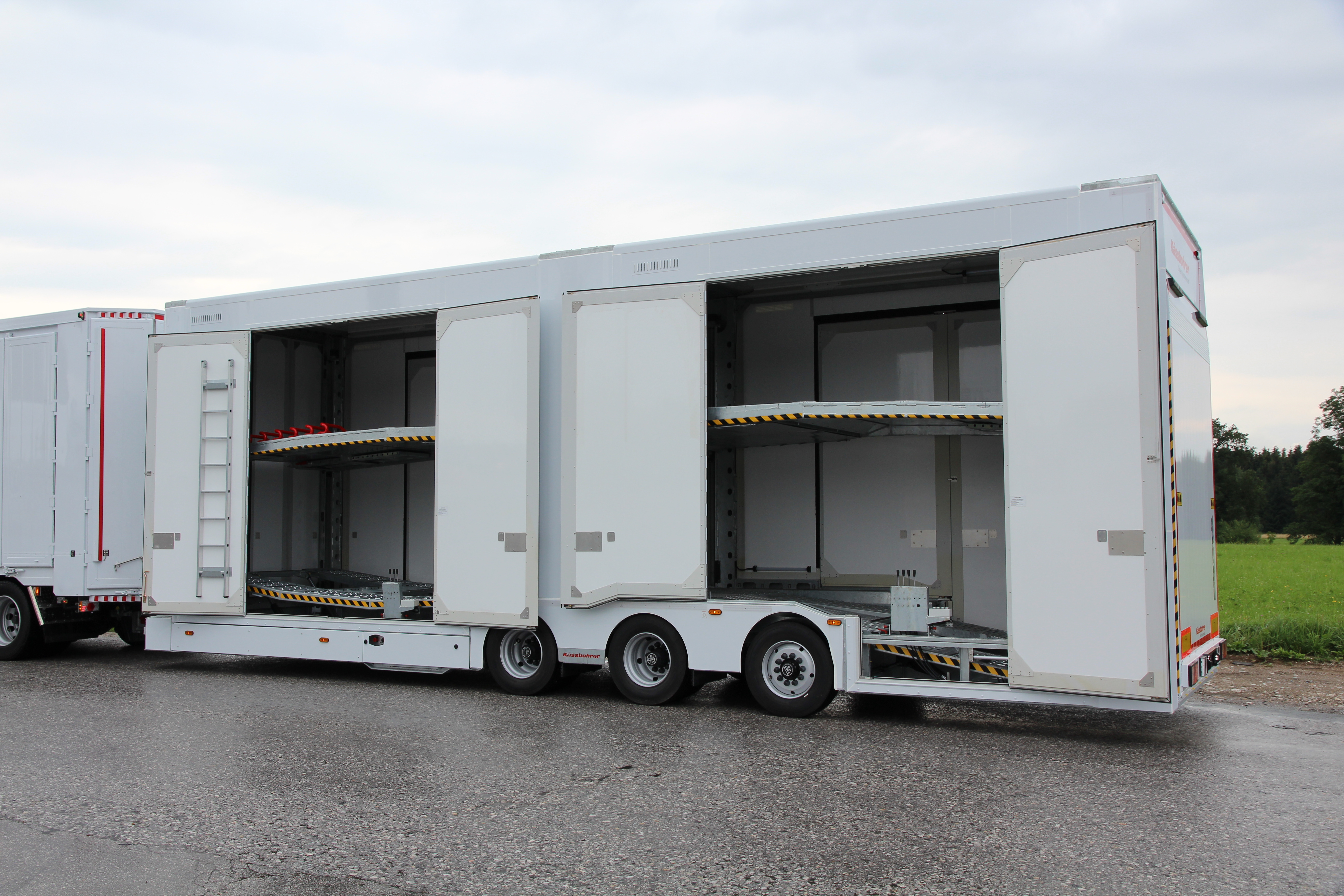

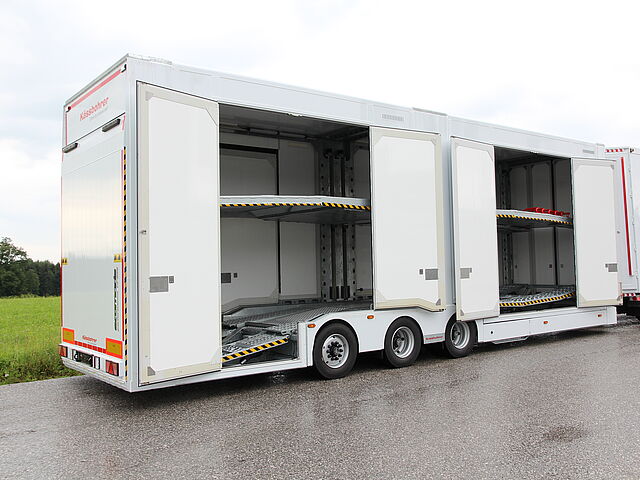

Large hinge doors with optional central locking system on both sides of the vehicle provide easy access and good visibility to the loaded vehicles
Flexible in use, especially for urban and distribution transport

Weights and dimensions

Technically permissible maximum mass

23,450 kg

Maximum payload

12,710 kg

Length of inside tracks

10,250 mm

Entry width

2,300 mm

Overall vehicle length

Max. 11,970 mm

Notice

The T4-235 trailer is combined with the S2-180 truck.

Configuration

Standard equipment

Fully hot-dip galvanised lower loading platform with hydraulic height adjustment at front end, above the axles and at rear end
Front extension of the platform for loading the truck
Two-part upper loading platform
Upper platforms: spindle lifting pillars at trailer front and rear end, telescopic lifting cylinders in the middle
Two folding doors at the front end for loading the truck
Hydraulic tailboard
EBS braking system, including axle relief for the rearmost axle in case of unloaded transport

Optional equipment

Radio remote control for all ecomode functions
Central door locking system
Multicolour lacquering / metallic lacquering

Loading example
Possible combinations

		Trailer
		metago®pro	variotrans®pro	supertrans®	intago®	intago®MAX	modolan®	ecomode® T4-235	ecomode® T2-180
Truck superstructure	metago®pro	×	×	×	×	×
	variotrans®pro	×	×	×	×	×
	supertrans®pro	×	×	×	×	×
	citytrans®pro	×	×	×	×	×
	modolan®						×
	ecomode® S1-075
	ecomode® S2-180							×
	ecomode® S2-260								×
	ecomode® S2-260 L

more about Ecomode Performance T4-235
